All-in-one (Unsectioned Model) Case

Create the Order

Note

• Select Restoration as the dentistry type.
• Select Patient Mode.
• Select Unsectioned Model.
• Select Occlusion Type according to the reality.
• Click in the scanning interface and check All-in-one and click Unsectioned Model.

More details can be found in Scan Strategy Configuration.

Start Scanning

Total Jaw Scan

1. Follow the guidance on the interface to place the height adaptor, the fixture and the model.
2. Set the configuration in the camera window.
3. (Optional) Turn on additional functions.

4. Click or press Space / Enter to start scanning.




5. After scanning, move or rotate the cutting plane to cut the model.

6. Click to edit the model. For more, see Function.
7. Click to save the edit and return to the scanning interface.
8. Click to preview the scanned model; or click to rescan; or click to finish.

All-in-one Scan

1. Follow the guidance on the interface to place the model.



2. (Optional) Turn on additional functions.

3. Click or press Space / Enter to start scanning.



4. If the scanned data is incomplete, click to add more data to the existing scan.

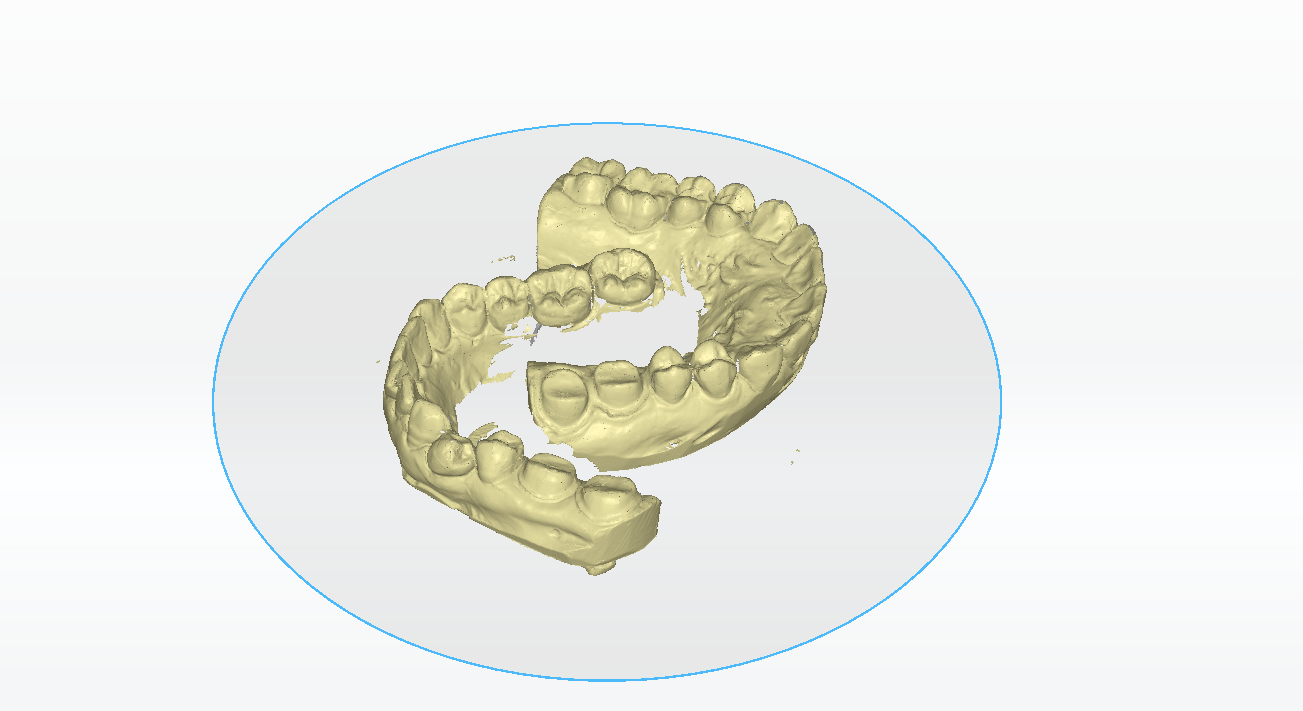

5. After scanning, cut and edit the scanned data for a cleaner scan.

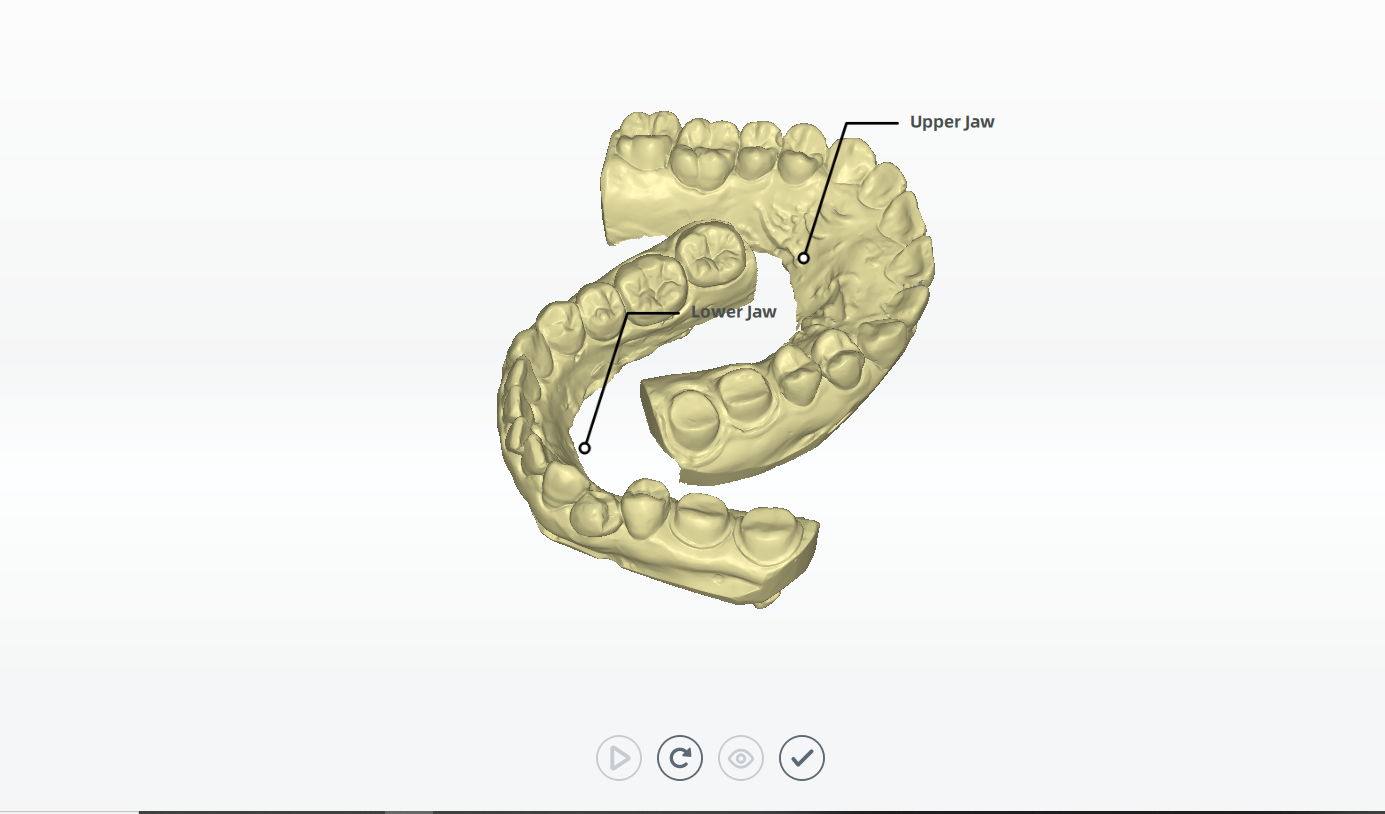

6. (Optional) If the upper and lower jaw tags are displayed incorrectly, click to swap.

7. Click to finish.

All-in-one Alignment

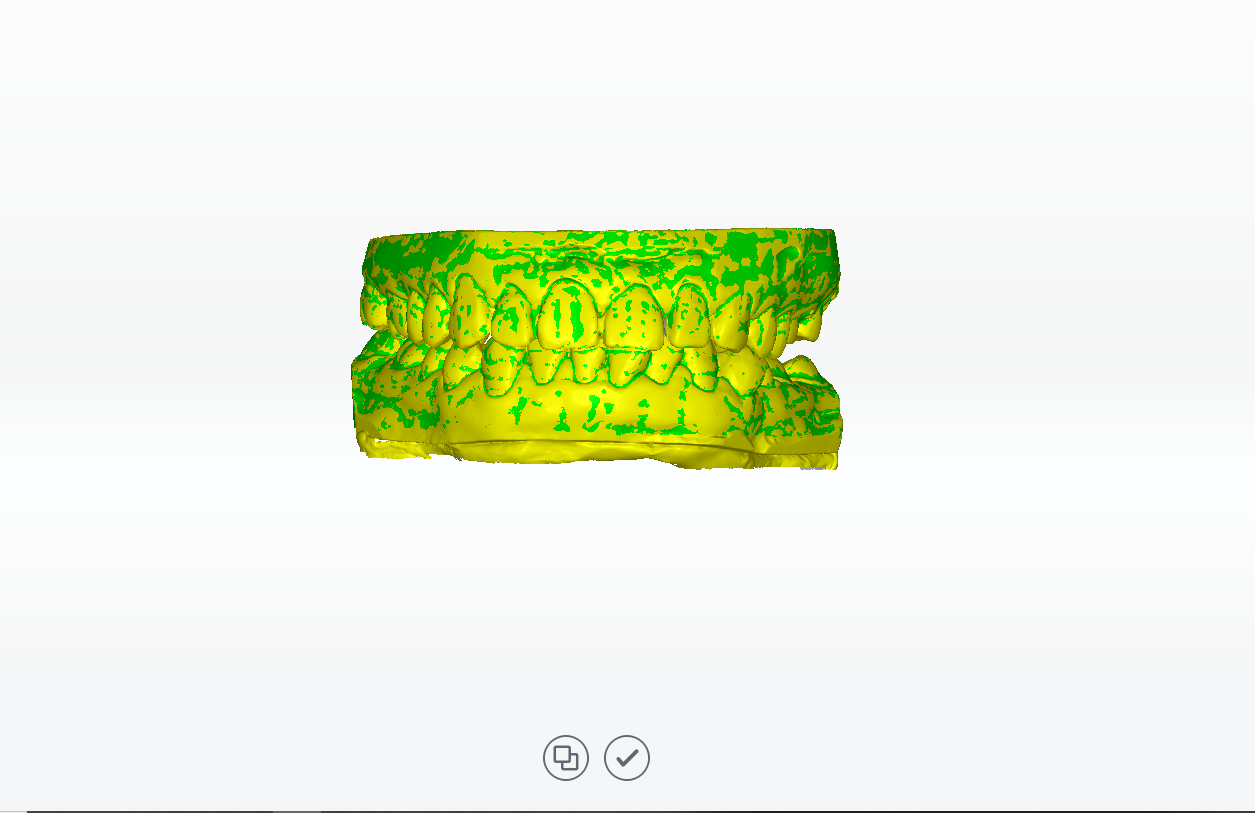

1. Check the automatic alignment and click to finish.
2. If the result is not optimal, click and align the scanned data manually.

Col

Automatic Alignment

Col

Manual Alignment

Finish Scanning

After finishing the scanning process, click on Go to Pre-design to edit the scanned data.
