Screw Channel Sealing

Screw Channel Sealing is a digital alternative to using wax to fill the abutment screw channel. It ensures the design software creates the accurate internal structure of the restoration during crown design, reducing the need for additional polishing and improving design efficiency. Additionally, sealing retains some traces of the original opening, aiding technicians in identifying the correct direction for creating the opening during the design process.
Check to enter the sealing function. The practical methods include four-point mode, line-drawing mode and point-marking mode.

Note

Click the marked tooth on the upper-left menu and the model will be displayed in the center of the certain tooth.

Four-point modeLine-drawing modePoint-marking mode

Four-point mode refers to double-click the left mouse button around the abutment opening to mark four green points. After selecting four points, the lines will be drawn automatically, sealing the targeted data.

Col

Col

1. Click and move the slider to enter four-point mode.

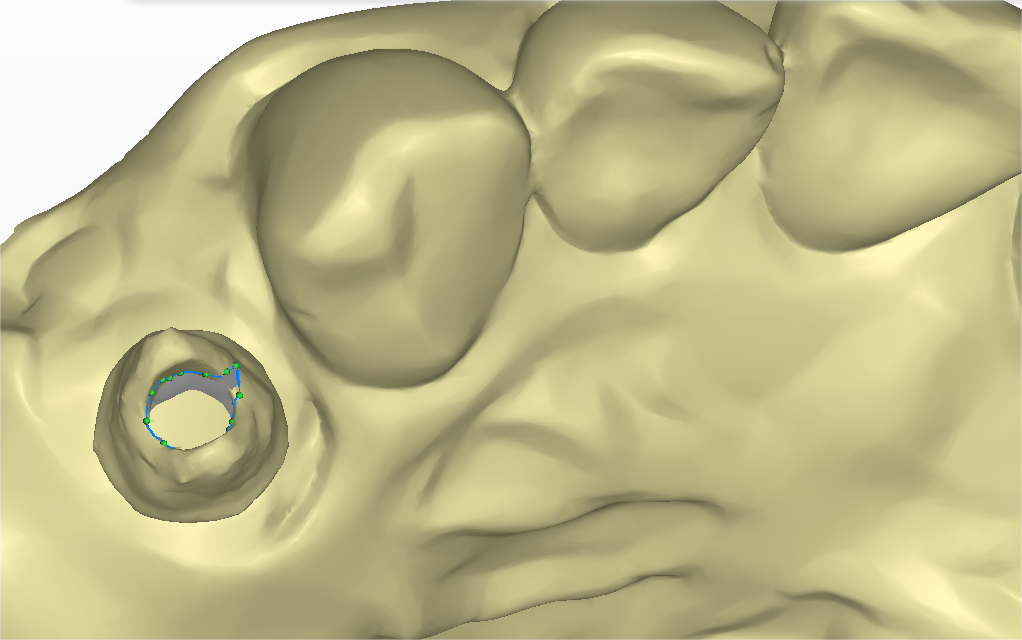

2. Double-click four green points around the opening of the abutment, automatically drawing the sealing line.

3. Click to seal the targeted data.

Click to enter line-drawing mode. On the to be sealed abutment, hold the left mouse button and move the cursor to manually draw the sealing line.

Note

The magnetic effect is accessible when marking points, and helps the line automatically cling to the abutment's edge.

Point-marking refers to mark points by clicking to draw the sealed line manually.

1. Click to check point-marking mode.

2. (Optional) Click to enable Magnetic Effect.
   Magnetic effect allows lines to automatically cling to the abutment's edge.


3. Click the left mouse button to add green points around the abutment opening. Double-click the left mouse to draw sealing lines.



   Note

   After drawing, check the green points and move them to make adjustment if needed.

4. Click to seal the targeted data.

Col

Note

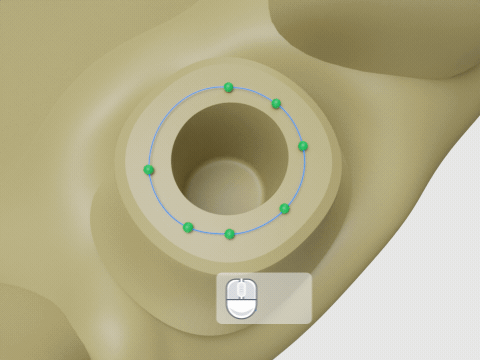

• Move the point: Hold down Left Button on the points.
• Delete the point: Double click Right Button on the model.
• Generate a point: Double-click Left Button on the model.

Col

Function buttons

Icon	Name	Description
	Upper jaw	View the upper jaw.
	Lower jaw	View the lower jaw.
	Delete	Delete the current sealing line.
	Maximum curvature adsorption	Adhere the sealing line along the contour of the abutment opening automatically.
	Contract	Shrink the sealing line inward.
	Expand	Expand the sealing line outward.
	Undo	Undo the last operation.
	Redo	Redo the last operation.
	Texture	Show the texture of scanned model when texture scanning is enabled.
	Smooth	Smooth the seal to make it less uneven.
	Reset	Reset the operation.
	Auto-fill	Adjust the size of the model to be adaptive to the interface.
