Connection

Caution

Please make sure you are using the correct power adapter.

Steps

1. Connect the aviation cable (4) to the power port (1) and the USB port (2).
2. Connect the power cord (6) to the power adapter (7).
3. Connect the power adapter (5) into the aviation cable (4).
4. Connect the USB port (3) on the aviation cable to the PC USB 3.0 port.
5. Insert the Dongle (8) into the PC USB port.
6. Plug in a socket to power up.

Note

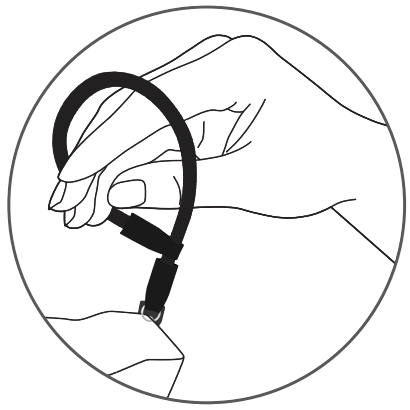

To prevent accidental dropping of the scanner from the hand, it is advisable to attach a wrist strap at the rear of the scanner. You can wear the strap while using the scanner.

Note

• If you need to use the full functionality, please insert the dongle.
• If you don't insert the dongle and only connect the device, the software will automatically enter the guest mode when you start it.
• If you don't insert the dongle and don't connect the device, the software will automatically enter guest mode after selecting the device type.
