Introduction

FreeScan UE Pro is a handheld laser 3D scanner independently developed by SHINING 3D Tech Co., Ltd., featured in the fast scanning speed, complete data acquisition, light weight, and convenient operation. Besides, the device supports repeatable high-precision operations, without discrimination on the material and color of the objects to be scanned. Therefore, black or reflective surfaces are still scannable. This device is mainly used in industries such as automobile industry, transportation, aerospace, mold inspection and machinery manufacturing.

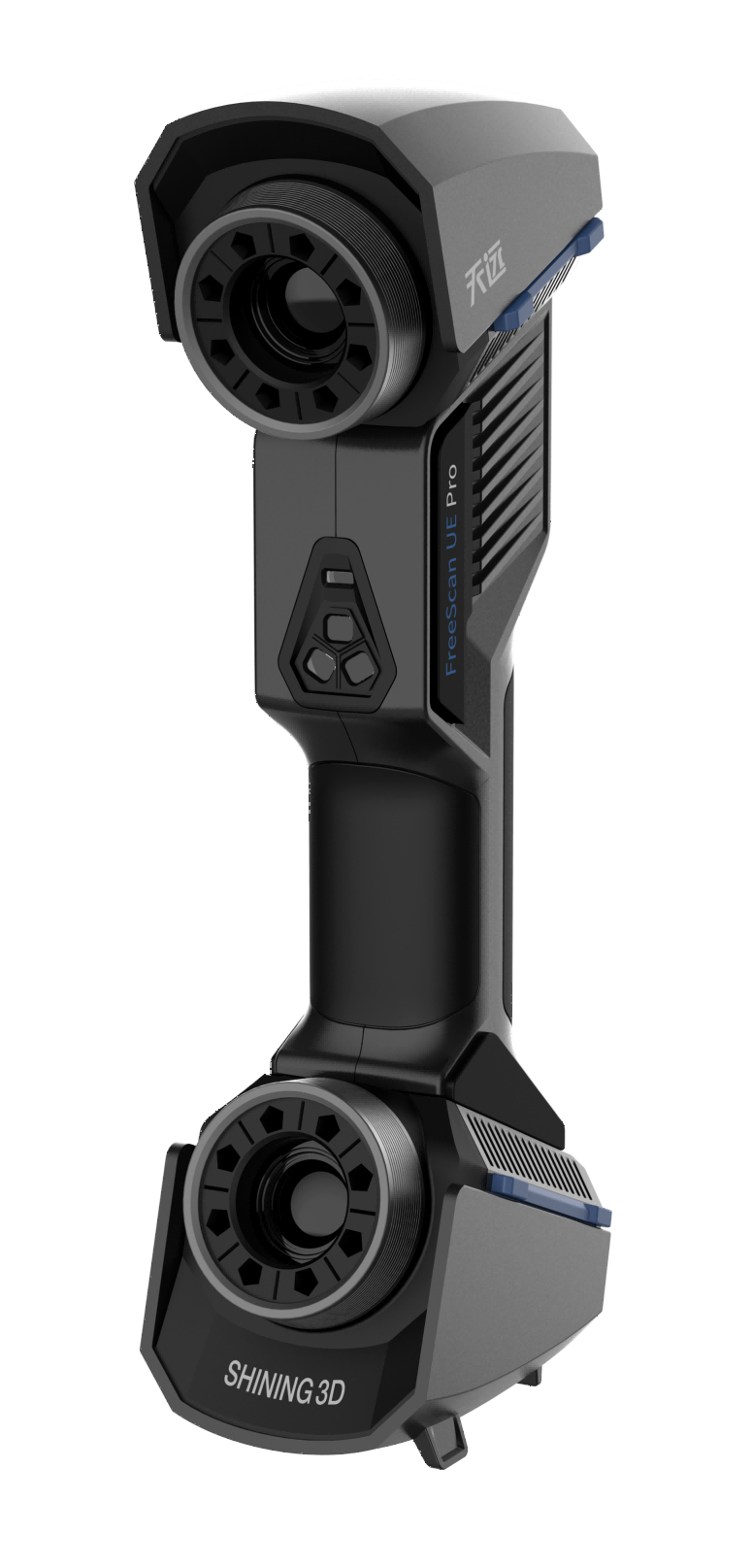

Appearance

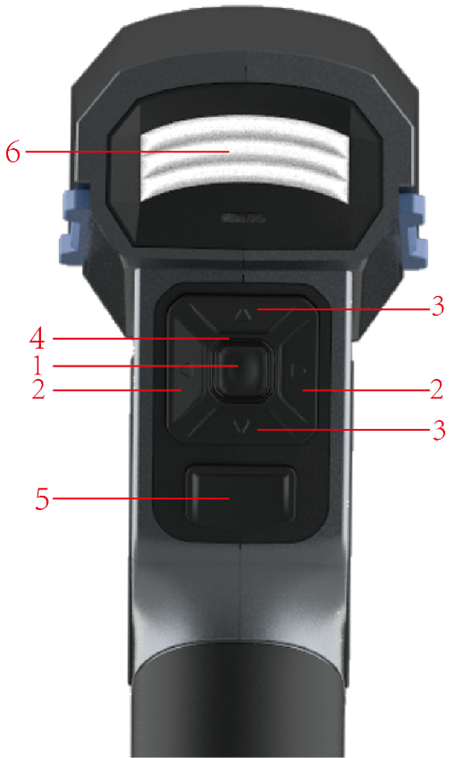

Appearance Button
No. Name
Description
1 Menu
  • Press: The menu pops up; then press the left button to quickly exit the menu panel.
  • Press and hold: Change the number of laser lines.
    		•
    2 Adjustment button
  • Press the left button: Decrease the brightness. Press and hold the left button: Switch scan modes.
  • Press the right button: Increase the brightness. Press and hold the right button: Switch scan object modes.
    		•
    3 Zoom button Press the up button to zoom in the model; press the down button to zoom out the model.
    4 Power indicator Only after the power indicator lights on, the user can operate.
    5 Scanning button
  • Press: Preview / Start Scan / Pause Scan.
  • Press and hold: To do markers optimization in the scan markers mode and the photogrammetry mode.
    		•
    6 Scanning distance indicator To indicate the scanning distance.
    Red: Too close. Yellow: Relatively close. Green: Suitable distance. Greenish-blue: Relatively far. Blue: Too far.

    Laser Information

    Class 2 Laser Product

    Laser power: < 1 mW

    Wavelength: 450 nm

    Complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No.56, dated May 8, 2019.

    Caution

    Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

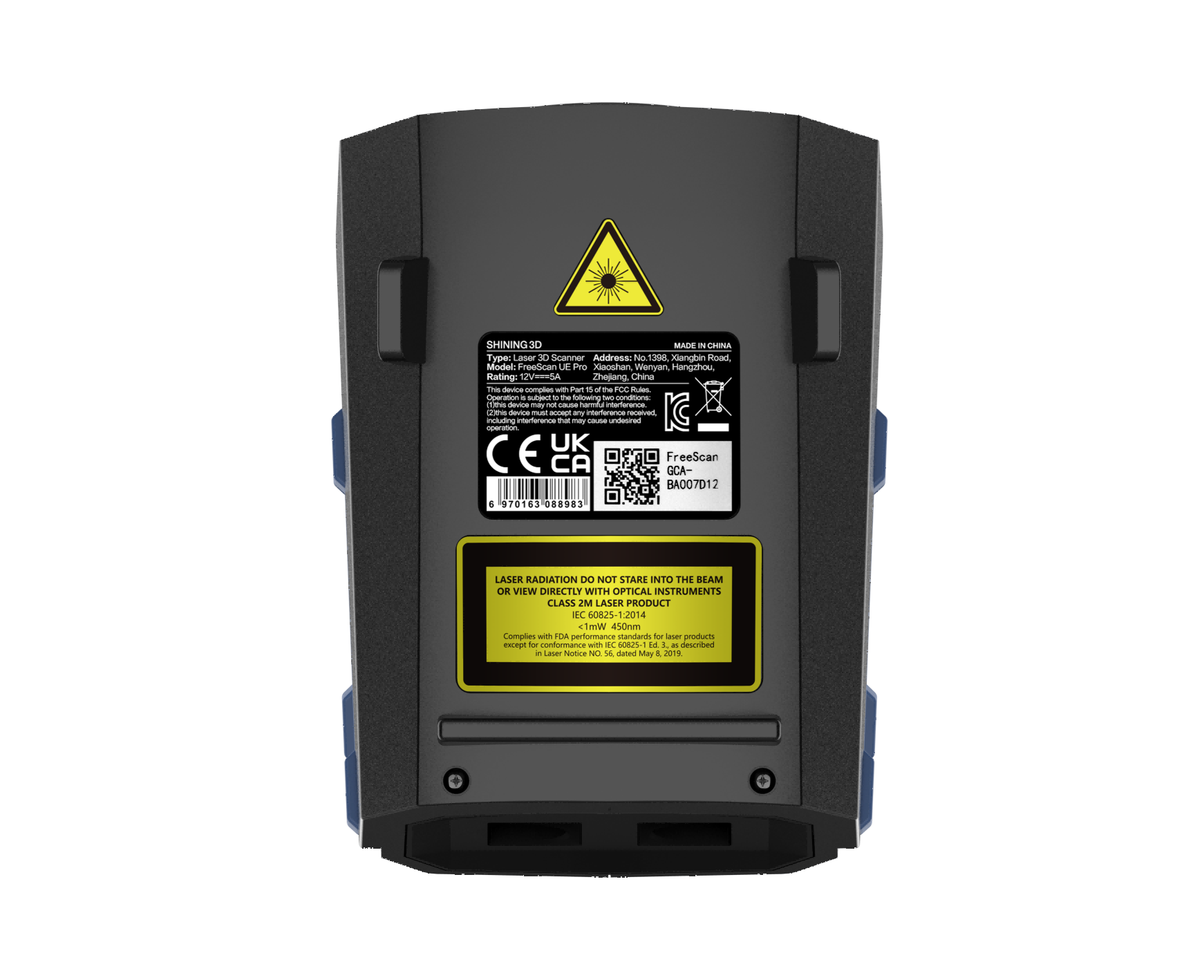

    Labels

    Read the content on the yellow sticker carefully before using the device.

    Identification Label Warning Label & Certification Label Laser Label
    Logo
    Description
    LVD/EMC Directive
    This product complies with the European Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
    WEEE Directive-2012/19/EU
    The product this manual refers to is covered by the Waste Electrical&Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner.
    The UKCA marking is the product marking used for products being placed on the market in Great Britain (England, Scotland and Wales).
