Introduction

FreeScan UE Pro2 (referred to as the "scanner") is a handheld blue laser 3D scanner independently developed by SHINING 3D Tech Co., Ltd.. This scanner features high-precision scanning capabilities and utilizes an embedded edge computing module to achieve wireless scanning. With a lightweight design of 930 grams and compatibility with various standard specifications of power banks, it revolutionizes the portability of handheld laser 3D scanners, enhancing the overall scanning experience and efficiency.

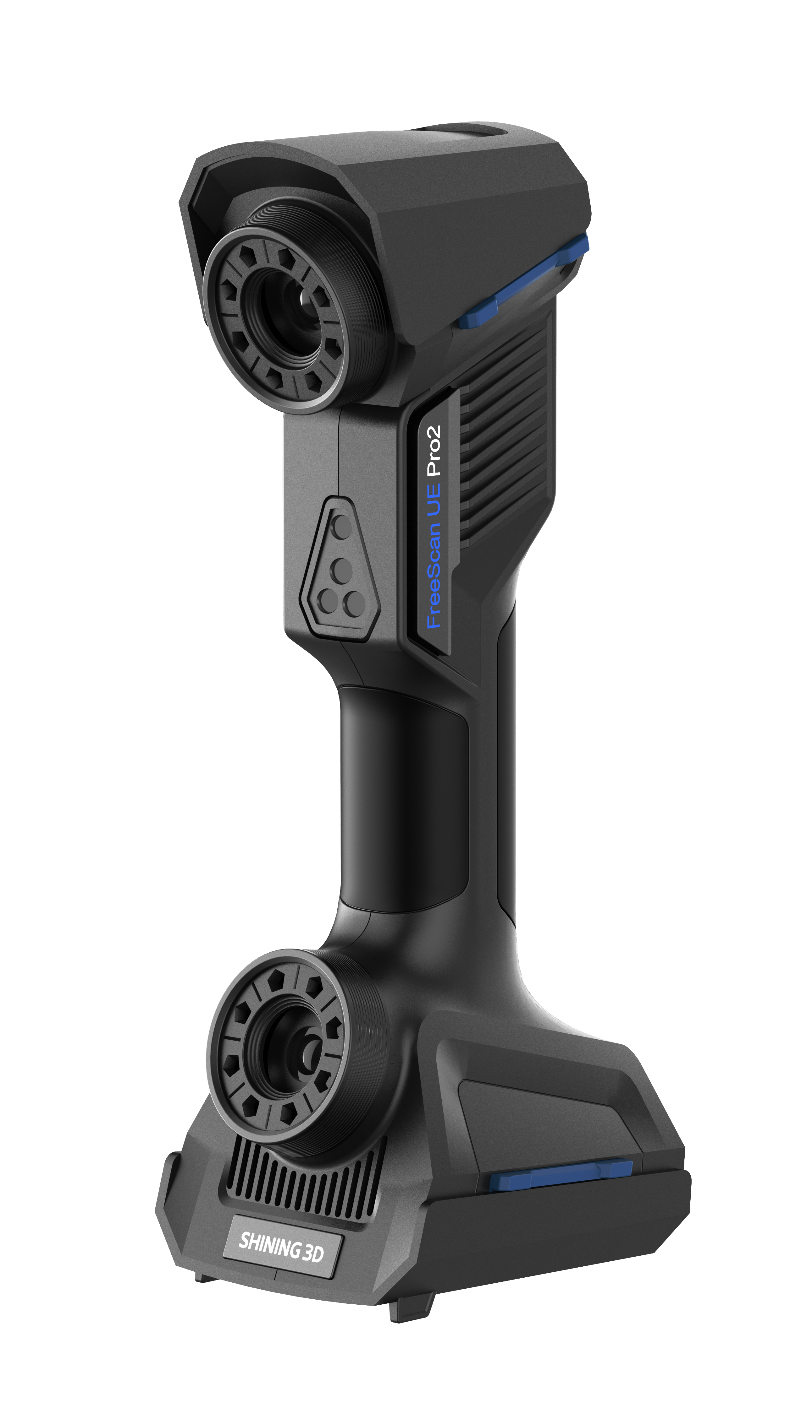

Appearance

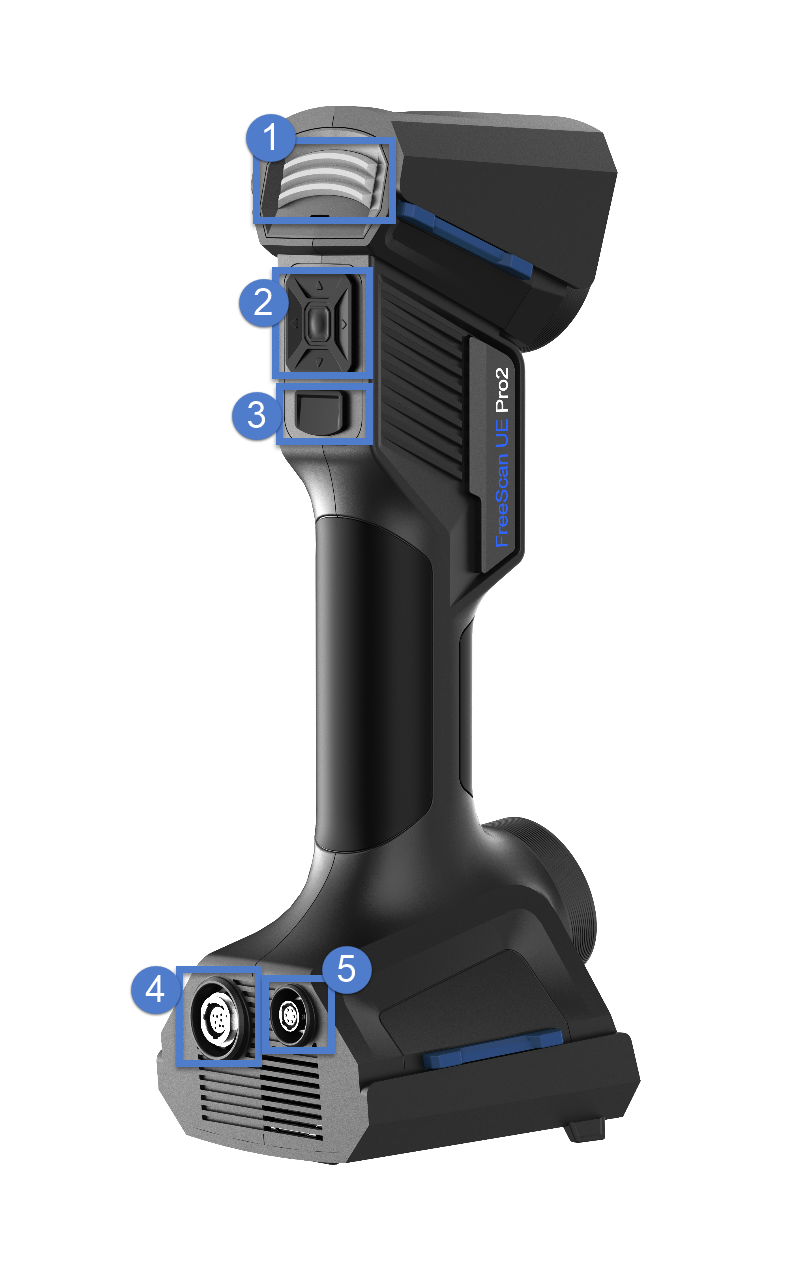

Appearance	Button

No.	Description
1	To indicate the scanning distance. Red: Too close. Yellow: Relatively close. Green: Suitable distance. Greenish-blue: Relatively far. Blue: Too far.
2	Up and down buttons: Size adjustment buttons for data display in a 3D scene. Press the up button to zoom in the model; press the down button to zoom out the model. Left and right buttons: Camera brightness adjustment buttons. Press the left button to decrease brightness; press the right button to increase brightness. Press and hold the left button: To switch scan modes in a loop. Press and hold the right button: To switch scan objects in a loop. Middle button: Press to bring up the menu panel; then press the left button to quickly exit the menu panel. Press and hold the middle button: To switch light source modes in a loop. Power indicator: Only after the power indicator lights on, you can operate the device. Cyan: Power on. Blue: Standby. Green: Preview. Red: Scanning.
3	In scanning interface, press the button to switch the scanning status in a loop: preview > scanning > pause / finish scanning. In scanning interface, press and hold the button to perform global markers optimization in scan global markers mode and photogrammetry mode.
4	Port for a data cable
5	Port for a power cable

Laser Information

Class 2 Laser Product

Laser power: ≤ 4.7 mW

Wavelength: 450 nm

Complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No.56, dated May 8, 2019.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Labels

Read the content on the yellow sticker carefully before using the device.

Logo	Description
	LVD/EMC Directive This product complies with the European Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
	WEEE Directive-2012/19/EU The product this manual refers to is covered by the Waste Electrical&Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner.

CE

This equipment has been tested and found to comply with the limits for a EN 300 440 v2.1.1 receiver Category 1. These limits are designed to provide reasonable protection against harmful interference in a residential installation. When placed in the vicinity of other device(s) radiating in the 5725.00 MHz-5875 MHz band, the wireless transmission function of this device may be affected. Please take appropriate measure to mitigate this eventuality.

FCC

• This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
• When the device is so small or for such use that it is impracticable to label it with the statement specified under paragraph (a) of this section in a font that is four-point or larger, and the device does not have a display that can show electronic labeling, then the information required by this paragraph shall be placed in the user manual and must also either be placed on the device packaging or on a removable label attached to the device.
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
• This device for operation in the band 5150-5250 MHz is only for indoor use.
• This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. And user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• The device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue.

ISED

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(A)/NMB-003(A)

L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

1) L'appareil ne doit pas produire de brouillage;

2) L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'encompromettre le fonctionnement.
