Please connect all parts as the following steps.

Introduction to the Parts

No. Name
Description
1 Optical Tracker To be installed on a tripod.
2 Tracker Cable
  • One end for the tracker and the other end for the hub.
  • At the tracker end: One port for power supply, and the other port for network connection.
    		•
    3 Laser Scanner
    /
    4 Scanner Cable
  • One end for the scanner and the other end for the hub.
  • At the scanner end: One port for power supply, and the other port for data transmission.
    		•
    5 Hub To connect the tracker, the scanner and the computer.
    6 Hub Power Cable To connect the hub to the power supply.
    7 Data Cable To connect the hub with the computer.
    8 Dongle To authorize the use of the software.

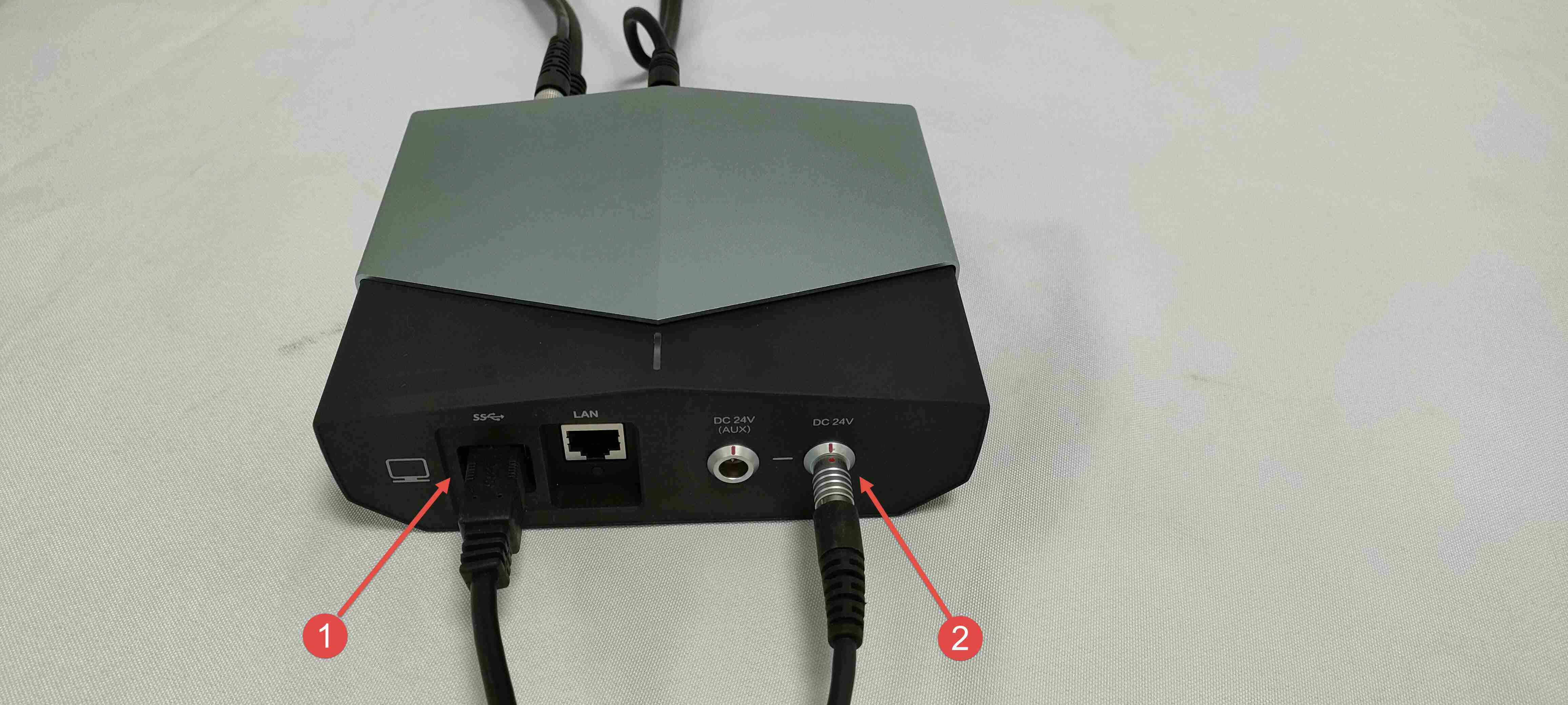

    Introduction to the Hub

    No. Name
    Description
    1 USB Port To connect the tracker, the scanner and the computer to transmit data.
    2 Network Port To connect the computer or the switch to test.
    3 Auxillary Power Input To connect the power adapter (24 V, 3.75 A). It is only available when an extended tracker is used.
    4 System Power Input To connect the power adapter (24 V, 3.75 A). It is a main power input of the system.

    No. Name
    Description
    1 Power Output To power on the extended tracker.
    2 Power Output To power on the tracker.
    3 Power Output To power on the scanner.
    4 Network Port To transmit data of the extended tracker .
    5 Network Port To transmit data of the tracker.
    6 USB Port To transmit data of the scanner.

    Wired Connection

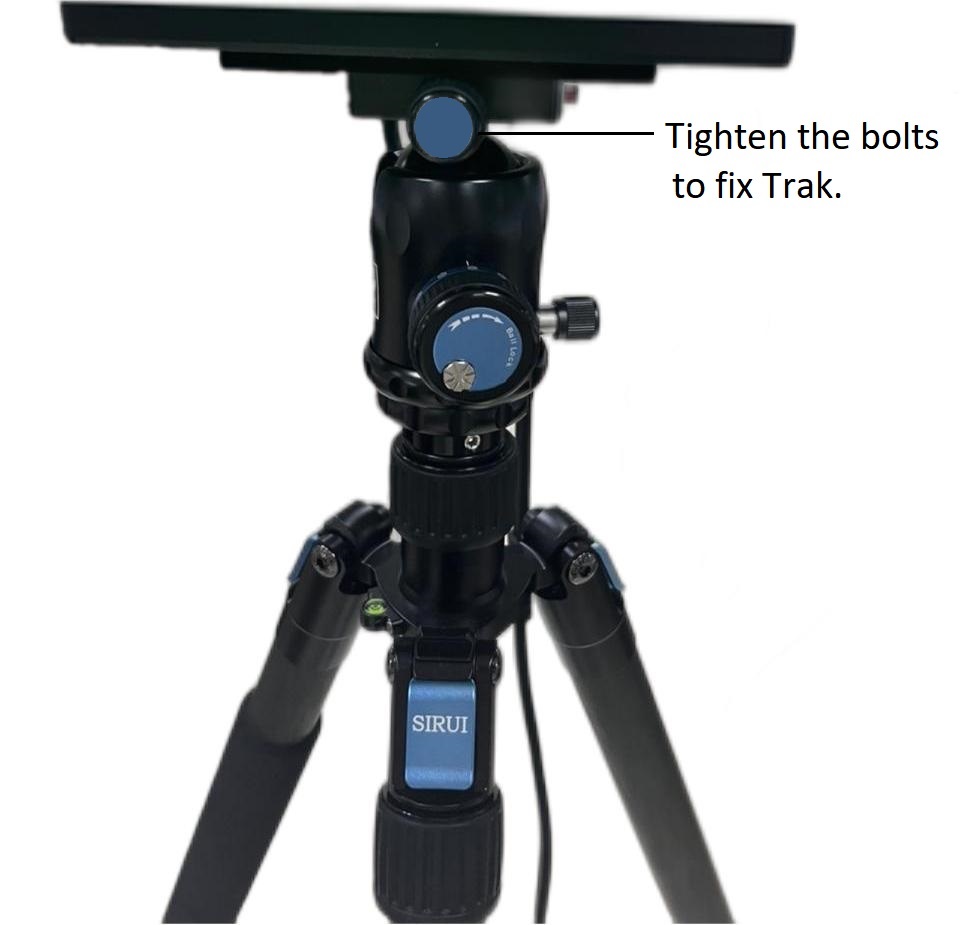

    1. Install the tracker on the tripod and tighten the bolts.

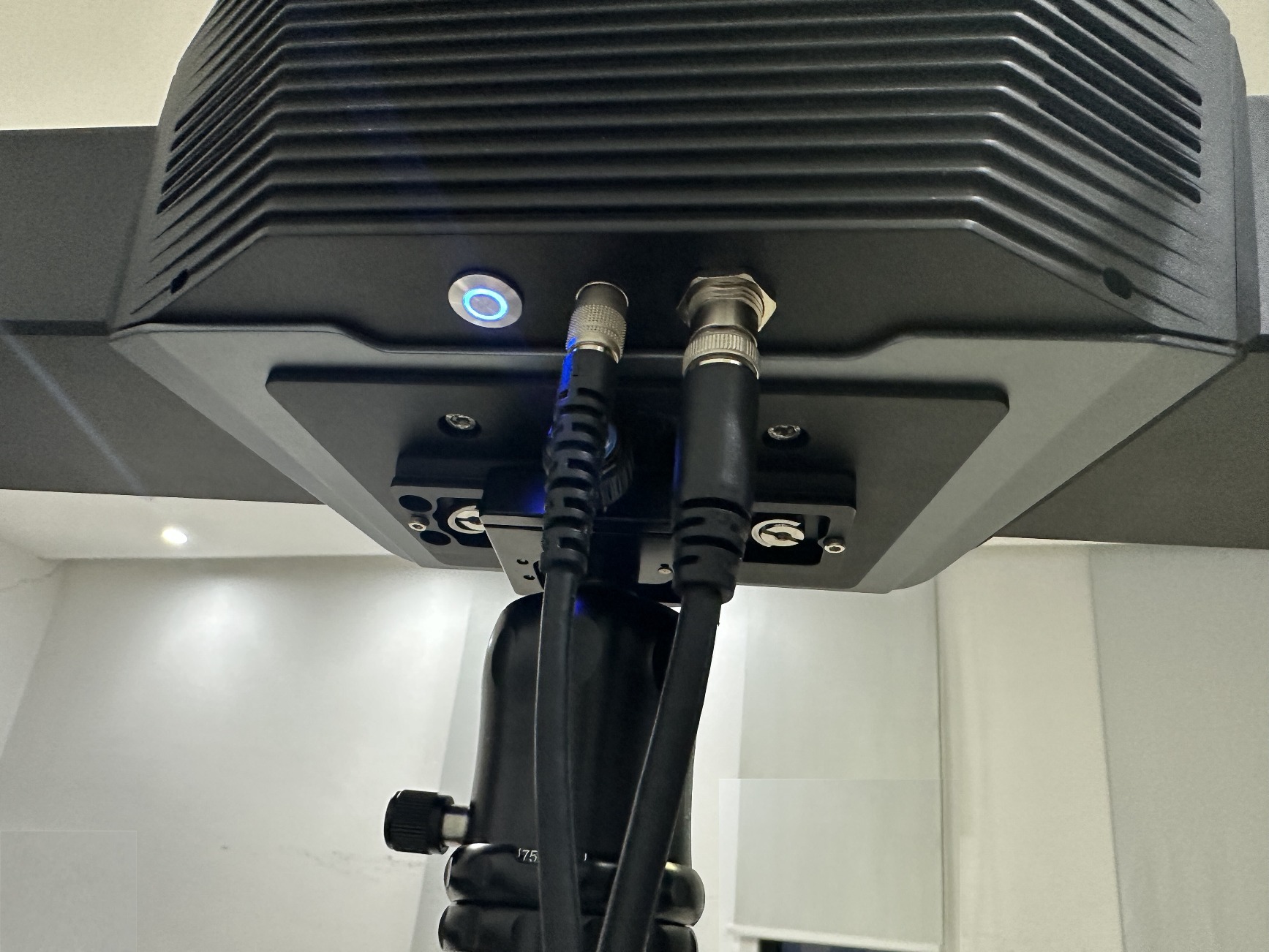

    2. Connect one end of the tracker cable with the tracker.

    3. Connect the other end of the tracker cable with the hub.

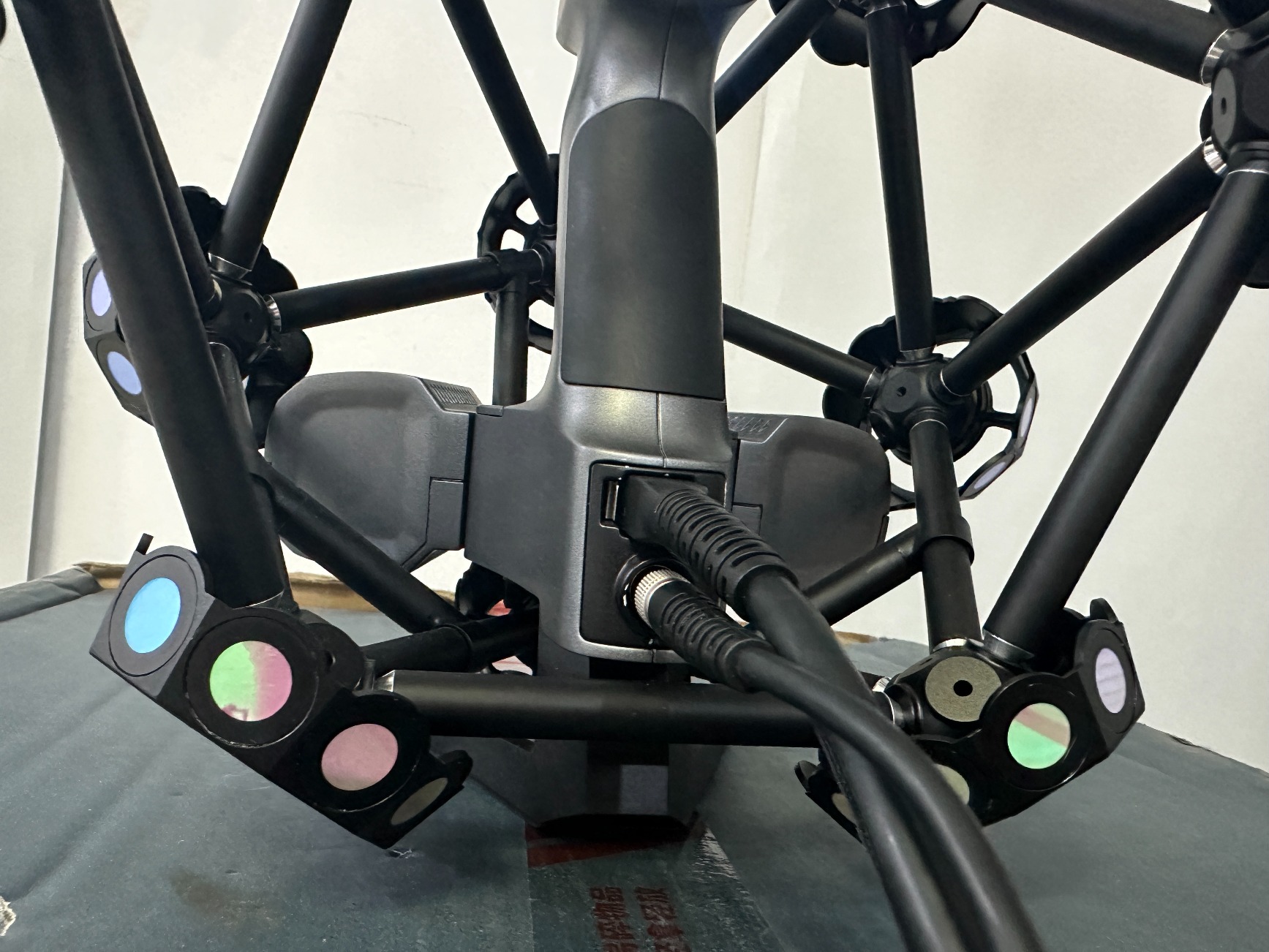

    4. Connect one end of the scanner cable with the scanner.

    5. Connect the other end of the scanner cable with the hub.

    6. Connect the hub and the power supply with the hub power cable.

    7. Connect the hub and the computer with the data cable.

    8. Power on the device.

    Wireless Connection

    1. Connect your computer and router using an Ethernet cable.
    2. Power on the router, scanner, and tracker respectively.
    3. After launching the software, check the device connection status.

    Note

    For more information on wireless connections and related illustrations, please refer to Device Pairing.
