Indicator Color

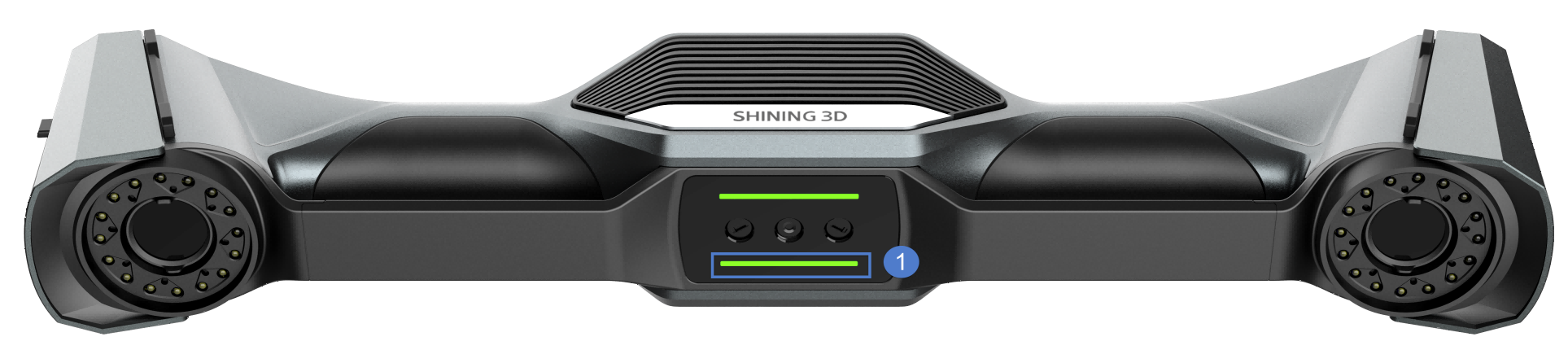

① Status Indicator
② Distance Indicator
③ Battery Indicator
Blue The device is not connected to the software. The device is too far from the scanned object.
/
Cyan The device is power on. The device is far from the scanned object.
/
Green The device is connected to the network and the software. The distance between the device and the scanned object is proper. Battery remaining charge ≥ 60%
Yellow
/
 The device is close to the scanned object.
/
Orange
/
/
 25% ≤ Battery remaining charge < 60%
Red The device is unconnected to the network. The device is too close to the scanned object. Battery remaining charge < 25%

Button
Press Once
 Press Twice
Press and Hold
Power Button (Wireless)
Power on UE Nova		 /
/
Middle Button
  • Cycle through Preview, Scan and Pause
  • Confirm (when bring up the menu)
    		•  Bring up the menu Perform Mesh Optimization, Mesh Processing or Global Markers Optimization
    Up Button Zoom in scanned data / Turn on or turn off Local Enlarged View
    Down Button Zoom out scanned data / Turn on or turn off View Lock
    Left Button
  • Brighten (brightness)
  • Exit the menu
    		•  / Cycle through different scan modes
    Right Button Darken (brightness) / Cycle through Normal and Reflective

    The probe can obtain the 3D coordinates of points by touching the surface of an object to achieve different detection targets.

    Col

    FreeProbe 2

    Col

    FreeProbe 2 Pro

    Button

    Button Function
    M Point marking
    Confirm (generate feature)
    Undo (step back)
    Move the cursor up
    Move the cursor down
    lower-left key Point marking
    lower-right key Point marking

    Note

    Press and hold and on the device body to pair the device with the software. Once paired successfully, fill in the probe diameter and probe length to use the device for calibration and point marking.

    Wired Connection

    Device Status Light Indicator Tone
    Power on and connecting Cyan One short beep
    Connected Green One long beep
    Marking successful Green flashes once One short beep
    Marking failed Red flashes twice Two short beeps
    Connected successfully with third-party software / One short beep
    Disconnected or failed to connect with third-party software / Two short beeps
    Power Status Description
    Power on Automatically power on after connecting to computer
    Power off No shutdown status

    Wireless Connection

    Device Status Light Indicator Tone
    Power on and connecting Cyan or blue One short beep
    Connected (wireless pairing has been completed) Green flashing One short beep
    Connection failed (wireless pairing has been completed) / One long beep
    Connection interrupted Blue (flashing) or green (flashing) Two short beeps
    Wireless pairing Blue (flashing) One short beep
    Wireless pairing successful Green (flashing) One short beep
    Wireless pairing failed Cyan Two short beeps
    Wireless pairing Blue (flashing) /
    Marking successful Green flashes once One short beep
    Marking failed Red flashes twice Two short beeps
    Battery too low Red /
    Power off / One long beep
    Connected successfully with third-party software / One short beep
    Disconnection with third-party software or connection failure / Two short beeps
    Power on and off
    Description
    Power on Press any button on the device to power on.
    Power off The device shuts down automatically after being idle for 10 minutes by default.
    Note
    Modify the maximum idle time through the upper right corner > General.

    1. An optional device. ↩
