Dentulous cases

In clinical cases, by scanning dentulous movement, doctors can better assess the occlusion relationship, jaw movement and other functions of patients and determine their occlusal relationship.

Scanning process

1 Freeway space2 Resting face3 Dentulous trajectory4 Face alignment

The freeway space is calculated by repeated data collections to improve its accuracy and user experience.

Steps

1. Place a marker on the tip of the nose (Prn) and the pogonion (Pg) respectively.



2. Instruct the patient to adjust their facial position and stay at an appropriate distance from the camera.

   • Facial recognition: center the face in the camera and the face detection box will be green.
   • Appropriate distance: adjust the distance between the face and camera untill the vertical indicator shows Suitable.

3. Measure the distance in the intercuspal position.

   Note

   The upper and lower jaws should remain stationary in the intercuspal position.

4. Click to record the distance between Prn and Pg in this position. Record three sets of data and the average will be calculated automatically.

   Note

   If the data is collected more than three times, the average of the latest three value will be calculated.

5. Click to go to the next stage.

6. Record the distance in the jaw's resting position.

   Note

   The resting position for the jaw is when the teeth are slightly apart, the lips are relaxed, and the tongue is lightly touching the roof of the mouth.

7. Click to record the distance between Prn and Pg in this position. Record three sets of data and the average will be calculated automatically.

8. Click to finish recording. The freeway space is the difference of the two averages values.

Resting face is the face when the patient is fully relaxed and the jaw is in its resting position.

Steps

1. Instruct the patient to adjust their facial position, keeping their face relaxed with a slight mouth opening, maintaining a stable expression, and staying at an appropriate distance from the camera.

   • Facial recognition: center the face in the camera and the face detection box will be green
   • Appropriate distance: adjust the distance between the face and camera untill the vertical indicator shows Suitable.

2. Scanning begins automatically after a 3-second countdown. To start manually, press the Space or click .

3. Instruct the patient to slowly and steadily turn their head up, down, left, and right, or hold the scanner yourself and move it in the same directions to scan the patient’s head, depending on the mode you choose.

   Col



   Col



4. Click to finish scanning Resting Face.

Dentulous trajectory scanning is used to collect the motion trajectory of markers to check the jaw relationship.

Scanning process

1) Marker recognition2) Static face3) Opening-Closing movement4) Jaw motion alignment

Collect data of markers' positions and align with the static face data. Thus, the dentulous trajectory movement can be aligned with the whole face.

Preparations

• Use 97% alcohol pads to disinfect the markers.
• Assist the patient in wearing a mouth retractor or using a mouth opener to keep mouth open.

Steps

1. With the patient’s mouth open, dry the tooth surfaces with cotton balls or an air syringe.

2. Select Stick markers or Jaw Motion Tracker and prepare the patient for scanning, then click Confirm.

   Col

   Stick markers
   (for patients with a fully exposed low dentition)

   Col

   Jaw Motion Tracker
   (for patients with a deep overjet or overbite)

   Caution

   • More than 3 markers are required.
   • Markers should not be arranged in a regular pattern.
   • Please fix Featured Shell before using Jaw Motion Tracker and place markers.

3. Click Start, and enter the marker quantity to collect two sets of marker data.



   1. Keep the head steady.

   2. The scanner's camera will automatically count the markers and record the number.

      Note

      • If the number of markers is consistent with the number you entered, the camera will automatically save the coordinates of points when the upper and lower jaws in occlusion.

      • If the number of markers is not consistent with the number you entered, adjust the face position or or place the markers again.

   3. Open your mouth slightly. The camera will automatically recognize the number of markers on the upper and lower jaw again.



   4. When finished, a message will pop up to inform that marker collection is completed.

Preparation

• Ensure that the patient is putting on the retractor in place and the upper and lower jaws are in the intercuspal position.
• Ensure that the markers are securely bonded to the patient's teeth or the tracker to prevent them from falling off.

Steps

1. Adjust the face position.

   • Facial recognition: center the face in the camera and the face detection box will be green.
   • Marker recognition: ensure markers are identified as green.
   • Appropriate distance: adjust the distance between the face and camera untill the vertical indicator shows Suitable.

2. Scanning begins automatically after a 3-second countdown. To start manually, press the Space or click .

3. Instruct the patient to slowly and steadily turn their head up, down, left, and right, or hold the scanner yourself and move it in the same directions to scan the patient’s head, depending on the mode you choose.

   Col



   Col



4. Click to finish scanning static face.

Caution

During the scan, the patient should maintain a stable facial expression.

Note

Since jaw motion alignment process may take a long time, it's better to perform opening-closing movement first to prevent marker from being soaked by saliva, resulting in recognition failure.

Preparation

• Ensure that the patient is putting on the retractor in place.
• Ensure that the markers are securely bonded to the patient's teeth or the tracker to prevent them from falling off.

Steps

1. Adjust the patient's facial position to ensure stability.

2. Scanning begins automatically after a 3-second countdown. To start manually, press the Space or click .

3. Instruct the patient to perform the opening-closing movement:

   • Perform the opening-closing action qucikly with mouth opens slightly.
   • Complete at least 30 opening-closing movements.
   • Keep the rest of the face as still as possible.

4. After completing the required times of opening-closing movement, click the button to end the scan.

5. The software will automatically save the recorded opening-closing movement.

Post-scan Operations

• Carefully remove the markers from the patient's mouth or remove the Tracker, then take out the mouth retractor.
• Replay and review the recorded opening-closing movement in the interface.

Caution

If using markers, be sure to remove them before taking out the mouth retractor to prevent any markers from accidentally falling into the mouth.

Related Operations

Icon	Description
	Previous frame
	Play
	Next frame
1X ▲	Select playback speed
	Replay
	View occlusion
	Open the bite

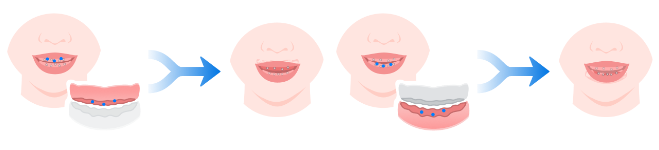

The alignment includes two groups of data: the alignment of upper jaw and static face as well as the alignment of lower jaw and static face. Choose automatic alignment first. If the results are unsatisfactory, switch to manual alignment.

Note

If the intraoral data of the patient has not been imported during order creation, click on the right side of the interface, and select the corresponding upper and lower jaw data for import.

Steps

1. Click to enter the interface.

2. Click to import upper jaw data and lower jaw data.

3. Start alignment.

   Auto alignment	Manual alignment
   Click and the software will automatically align the data. Select Manual alignment if the alignment effect is not ideal.	Steps 1) Click to start manual alignment. 2) Double-click on the upper jaw/lower jaw and the static face respectively to select 3 corresponding points. 3) Click to confirm. Caution Those added points should not be in one straight line.

4. Click to check the alignment effect.

Face alignment contains two steps: the alignment of intraoral model and static face, and the alignment of the resting face and static face.

Intraoral model and static faceResting face and static face

Auto alignment	Manual alignment
Click and the software will automatically align the data. Select Manual alignment if the alignment effect is not ideal.	Steps 1) Click to start manual alignment. 2) Double-click on the upper/lower jaw and the static face respectively to select 3 corresponding points. 3) Click to confirm. Caution Those added points should not be in one straight line.

Click to check the alignment effect.

Align the resting face data with the static face containing the dental retractor. Click Resting face and Static facial on the left.

Auto alignment	Manual alignment
Click and the software will automatically align the data. Select Manual alignment if the alignment effect is not ideal.	Steps 1) Click to start manual alignment. 2) Double-click on the resting face and the static face respectively to select 3 corresponding points. 3) Click to confirm. Caution Those added points should not be in one straight line.

Click to check the alignment effect.

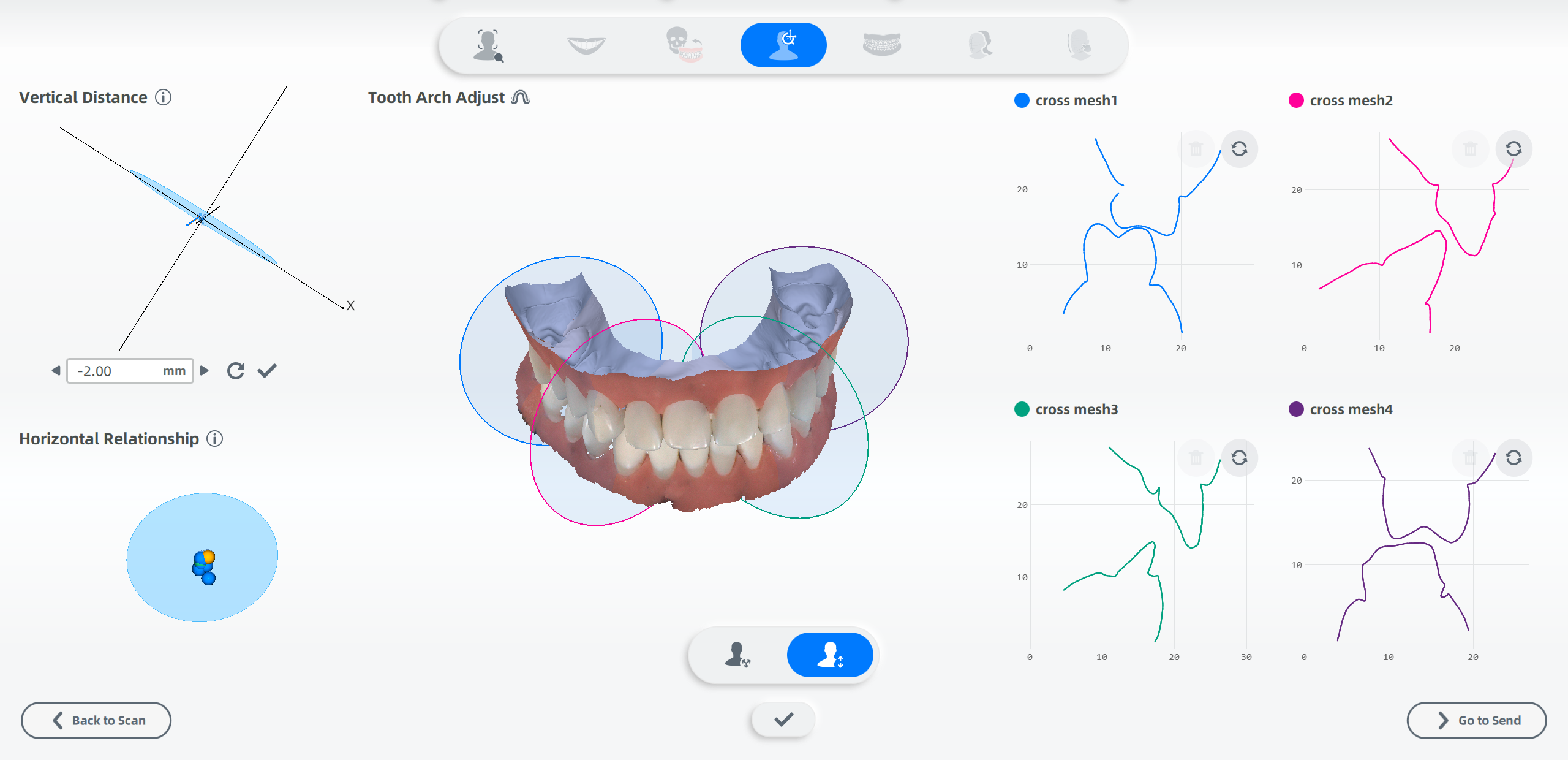

Optimal jaw relation

To determine the optimal jaw relation of dentulous jaw, there are 3 steps: create an axis, confirm the vertical distance and analyze the horizontal relationship.

AxisJaw relationship calculation

FScan can recognize the feature points on the model automatically.

If some point fail to be recognized, you can add the point to its corresponding position according to the prompt on the right.

Point marking

Create an axis according to the facial feature points.

Point	Illustration		Description
Point A		The lowest point of the intersection between the upper jaw and the median sagittal plane. Point A is the origin of the axis.
Point B		The highest point of the intersection between the lower jaw and the median sagittal plane.

Manual adjustment

• Move the cursor to the point and when the point turns into red, press the point and move it. Or double-click on the intersection line of the gingiva for quick movement.

• After adjusting, click to confirm and create an axis.

Vertical distanceHorizontal relationshipArch line adjustmentSection

Create a plane which is 2 mm (default value, adjustable based on clinical conditions) lower than Point B and perpendicular to the Z axis.

Enter the distance between the plane and Point B to adjust the plane. Or press the plane and move to adjust it. Click to confirm.

If you want to hide the trajectory and axis, click , and click before the corresponding name.

The software will automatically analyze the intersection between the relative movement trajectory (the trajectory of habitual opening and closing the mouth) of Point B and the horizontal plane. And then the software will calculate the trend of the intersections and determine the horizontal jaw relationship.

Myofascial point refers to the position with the highest repeatability of the lower jaw motion at the set vertical distance.

Centric relation position refers to the most rearward position of the lower jaw motion at the set vertical distance.

— The distance between the myofascial point and the centirc relation position. It is considered as dependable when it is no more than 2 mm.

You may need to adjust the arch line if it fails to be generated automatically or its effect is unsatisfactory.

There are two ways to enter the arch line adjustment interface:

• The software prompts that arch line generation has failed, and requests that you need to manually add six control points. Then click OK to enter the tooth arch adjustment interface.
• Click the next to the Tooth Adjustment title.

Once in the arch line adjustment interface, follow these steps:

1. Locate the alveolar ridge on the model.
2. Click six times in sequence along the ridge to add six points.
3. After adding the sixth point, the software will automatically generate the arch line.

Note

• To delete a control point, right-click on it.
• To confirm the arch line, click the .
• If unsatisfied, click the to readjust.

The software will automatically generate four circular planes distributed along the dental arch based on vertical distance. These planes intersect with the upper and lower jaws to form sections.

Within each section, click on the upper and lower jaw contours to generate measurement points. A line will automatically form between two measurement points, displaying the straight-line distance between them.

Note

Adjusting the position of circular planes on the model will regenerate the corresponding section.
