ABO report¶

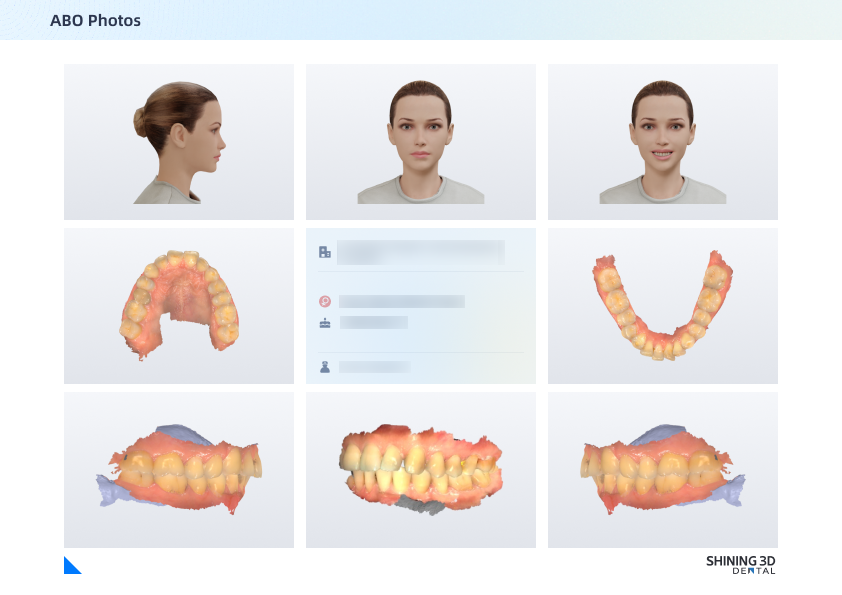

An ABO report is a case record that includes facial and intraoral photographs, allowing the examiner to accurately diagnose and observe treatment outcomes.

To make the ABO report accessible, you need to meet the following conditions:

The order type is orthodontics.
The intraoral data is imported.
Finish Smile Face and Closed Mouth Face scanning.
Finish oral scan model and facial models alignment, and Closed Mouth Face and Smile Face alignment.

Interface¶

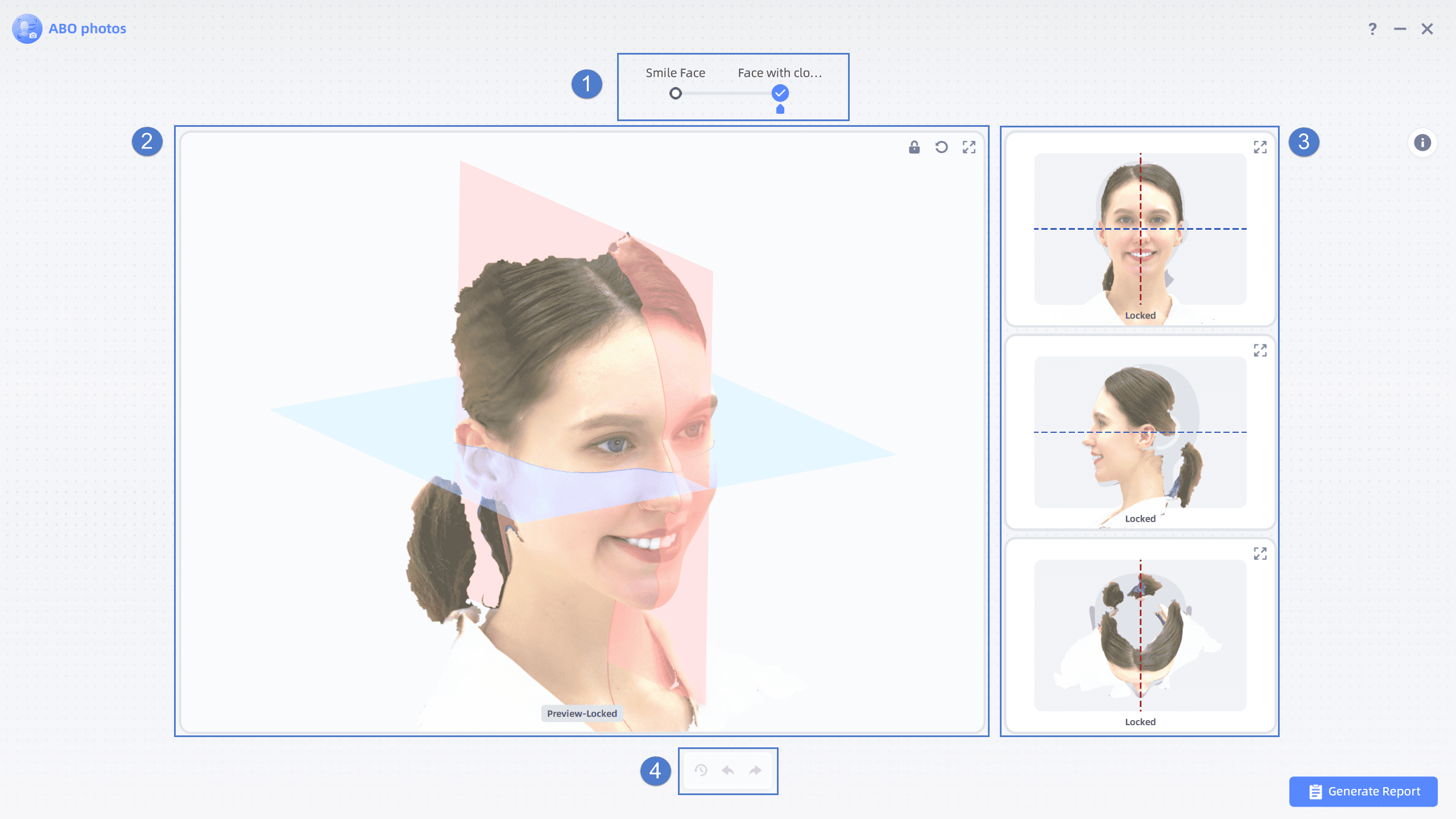

① Timeline② Preview③ Three views④ Toolbar

You can switch the model data through the timeline.

Operation	Description
Switch to another model	Drag the cursor to the node under the target model name .

It is used to preview the placement of feature plane on the model.

Caution

Adjust the model in the preview view will not move the feature planes. For adjusting feature planes, see Three views.

Operation	Non-touch screen	Touch screen
Rotate	Right-click and drag	Tap and drag
Pan	Click and drag with the middle mouse button	Swipe with three fingers
Zoom	Scroll wheel up or down	Pinch with two fingers to zoom in or out

Icon	Name	Description
	Lock/Unlock	Locked State: When in the locked state, the three views shows Locked. At this time, adjusting the three-view model will automatically realign the model in the preview view. Unlocked State: When in the unlocked state, the three views shows Unlocked. At this time, adjusting the three-view model will not change the model in the preview view, and its feature surfaces will move.
	Reset View	Cancel all operations, restore the model to the initial location
	Zoom In/Zoom Out	Zoom in/Zoom out the preview or the three views

The three views are used to adjust the positions of feature planes on the model.
The blue and red dotted lines in the three views are the projection lines of the median plane and the Frankfort horizontal plane respectively.
Adjust the model of one of the views in the three views, and the models in the other two views and the feature plane of the preview will change.

Operation	Non-touch screen	Touch screen	Note
Rotate	Right-click and drag	Tap and drag	When the model rotates in the gray area, it is 360° rotation. When the model rotates in the white area, it is rotate around the axis that is perpendicular to the screen.
Pan	Click and drag with the middle mouse button	Swipe with three fingers	/

Icon		Note
	Reset View	Remove all operations and restore the model to the initial location.
	Undo	Reverse your last action. You can reverse more than one action.
	Redo	Reverse your last undo. You can reverse more than one action that has been undone.

Steps¶

Model Adjustment: On the Timeline, switch between displayed models and assess whether feature planes need to be adjusted.
Feature Plane Adjustment: Use the Three-View on the right side to adjust the feature planes, and preview the changes in the Preview View.

The feature planes include the Median Sagittal Plane¹ (red one) and the Frankfort horizontal² (blue one).
Generate Report: Click the Generate Report button at the bottom right of the interface.
ABO Report Review: Review the ABO report and proceed with the related actions.

Name Description

Save Image As Select a folder to save all the images of ABO report.

Export PDF Report Export the report to your local storage.

The median sagittal plane (or median plane) describes the plane that divides the torso into equal left and right parts. ↩
The Frankfort horizontal plane is an imaginary line from the bottom of the eye socket to the top of the ear opening. ↩
