Post processing

In the interface of post processing, you can add text on models to distinguish printed splint of patients.

If there is no need to add text, please click Go to Print to print the splint directly.

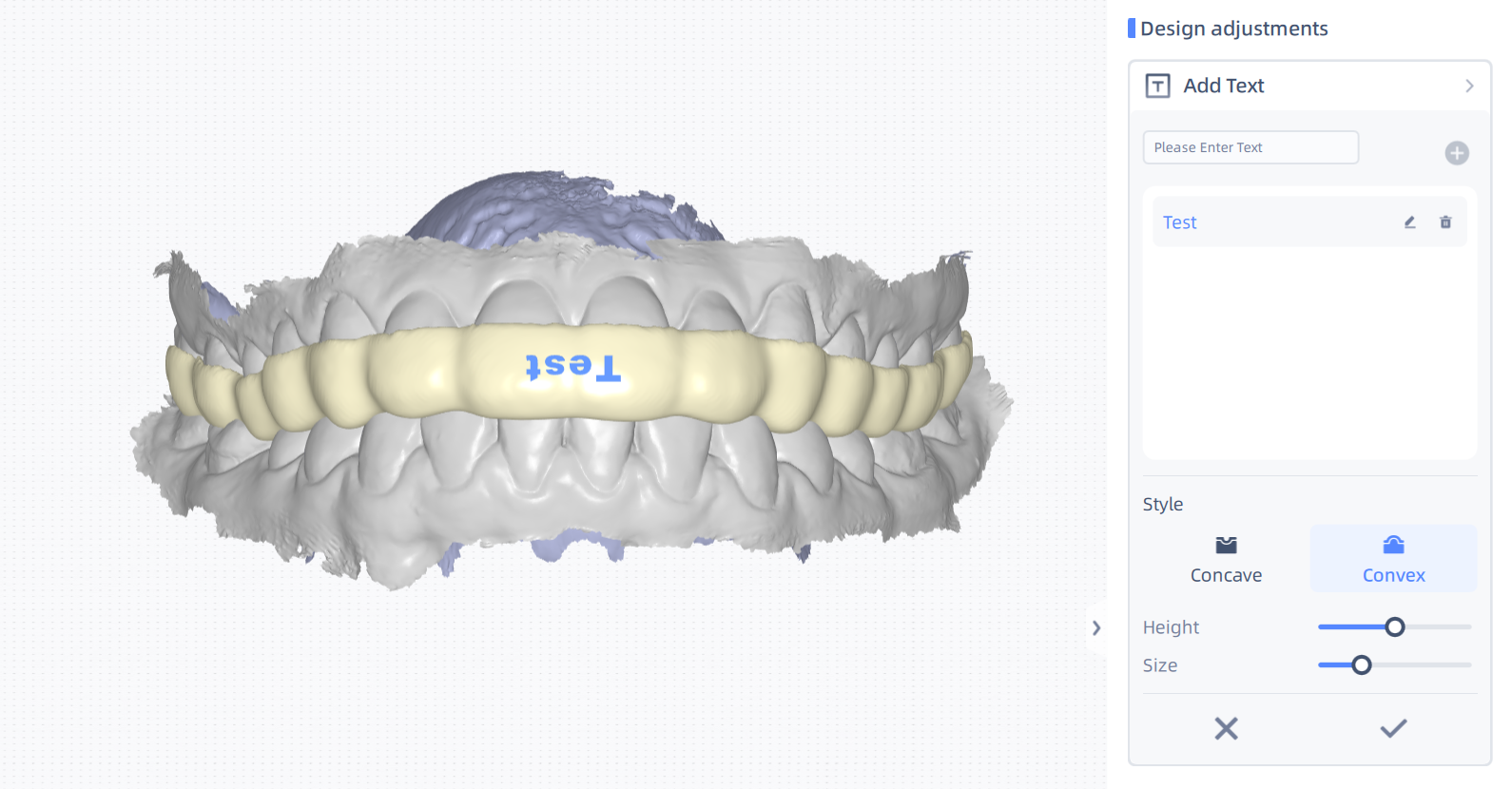

How to add text

  1. Click Add Text.
  2. Enter text (no more than 30 characters).
  3. Click and the text will follow the cursor.
  4. Move the cursor to the model and click to add text.

    To move the text that has added on the model already, please press it and drag the cursor.

  5. (Optional) Adjust text styles (including concave or convex, text height and text size).

    Note

    If the text is concave and the its height is more than the thickness of the splint, the splint may be penetrated when going to print.

  6. Click to confirm adding text. Click to cancel the current operations.

    If you need to add multiple texts, please repeat step 2 to step 5.

Other operations

When selecting a certain text in the text list, it is supported to edit or delete it.

  • Edit: Click to edit the text. Click to confirm.
  • Delete: Click to delete the text.
