Design of splint

Creating and editing a splint are both supported.

Create a design

Caution

CreSplint is avilable only when the order's type is the dentulous case of Optimal Jaw Relation and confirm the optimal jaw relation in Pre-design.

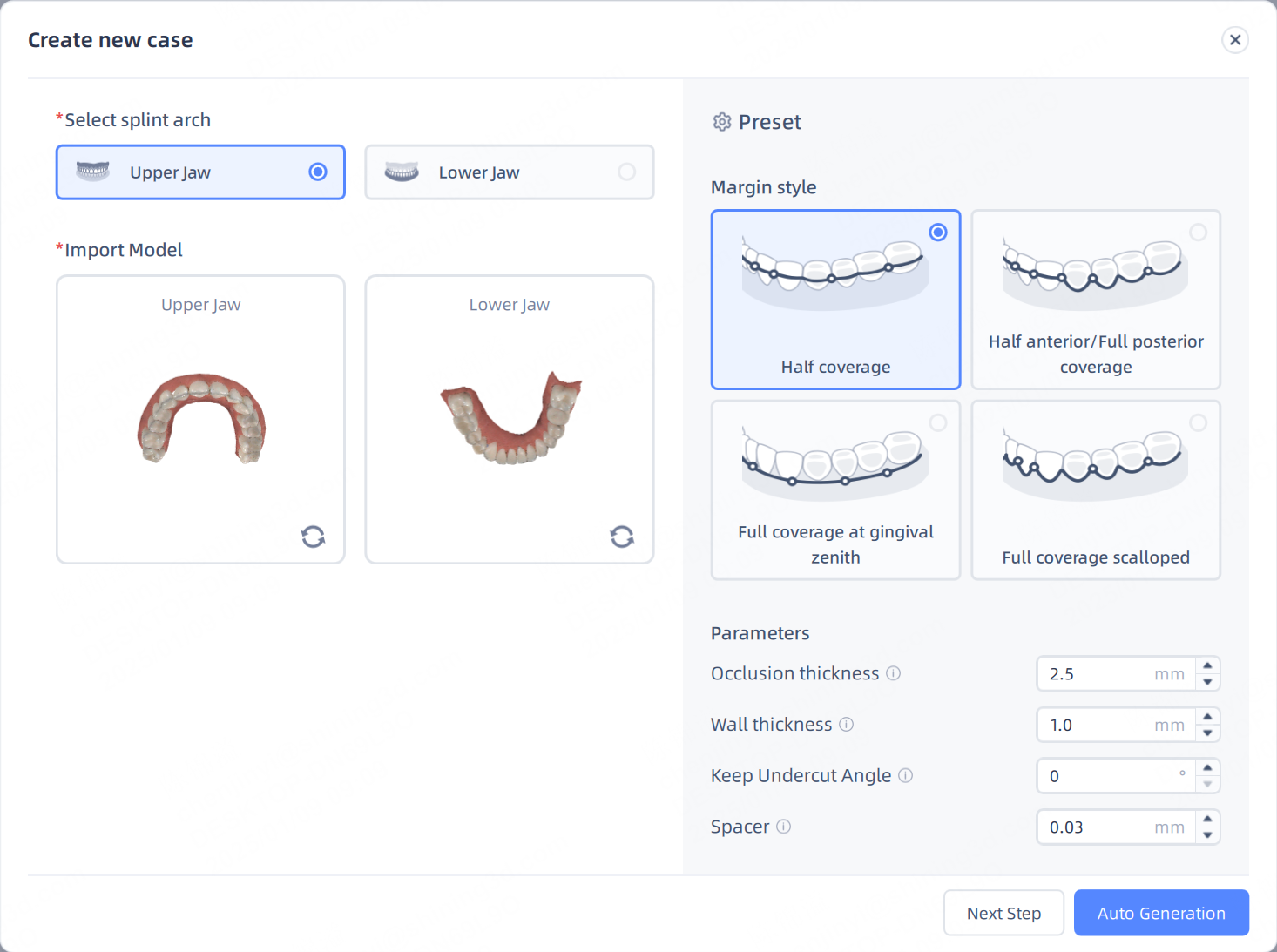

  1. Select the splint arch：Upper jaw or Lower jaw。

  2. Start preset the design. The user can select the margin line type and adjust parameters.

    Caution

    When selecting Splint, only one jaw can be chosen to design the splint (the upper jaw is chosen by default).

    Parameter Picture Description
    Occlusion thickness To adjust the occlusion thickness of Splints.
    Range: 0.6 mm ~ 5.0 mm.
    Buccal and lingual thickness To adjust the buccal and lingual thickness of Splints.
    Range: 0.6 mm ~ 5.0 mm.
    Keep undercut angle To adjust the undercut angle of Splints.
    Range: 0° ~ 90°.
    Gap To adjust the gap between the Splints and the teeth.
    Range: -0.30 mm ~ 0.30 mm.

  3. Click Next Step to enter Model Pre-processing.

    Or click Auto Generation to Post Processing. Model pre-processing, parameter adjustment and shape adjustment will be finished automatically.

Note

If you want to adjust the parameters and shape after Auto Generation, please click the step on the top of the interface.
