Interface¶

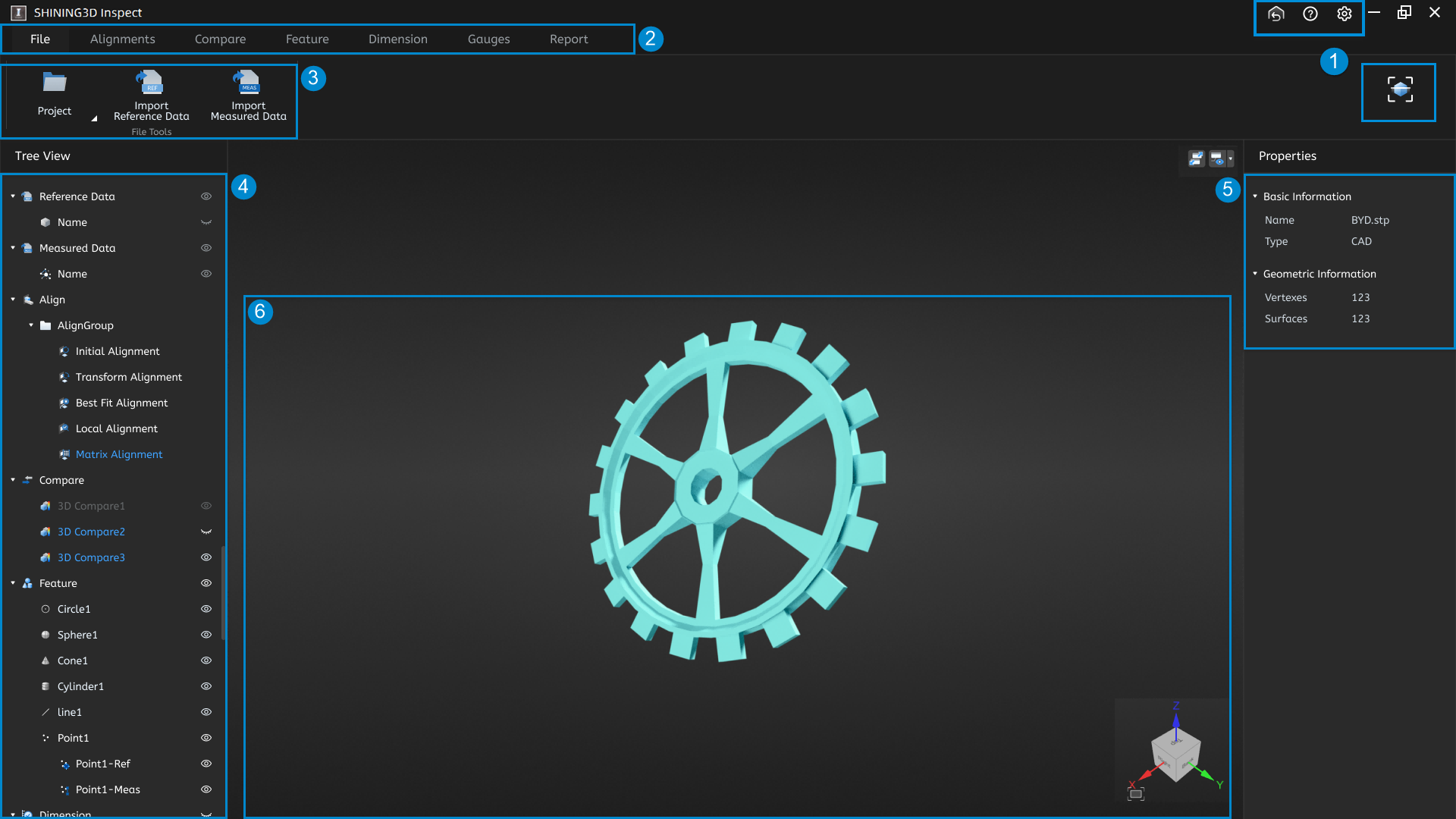

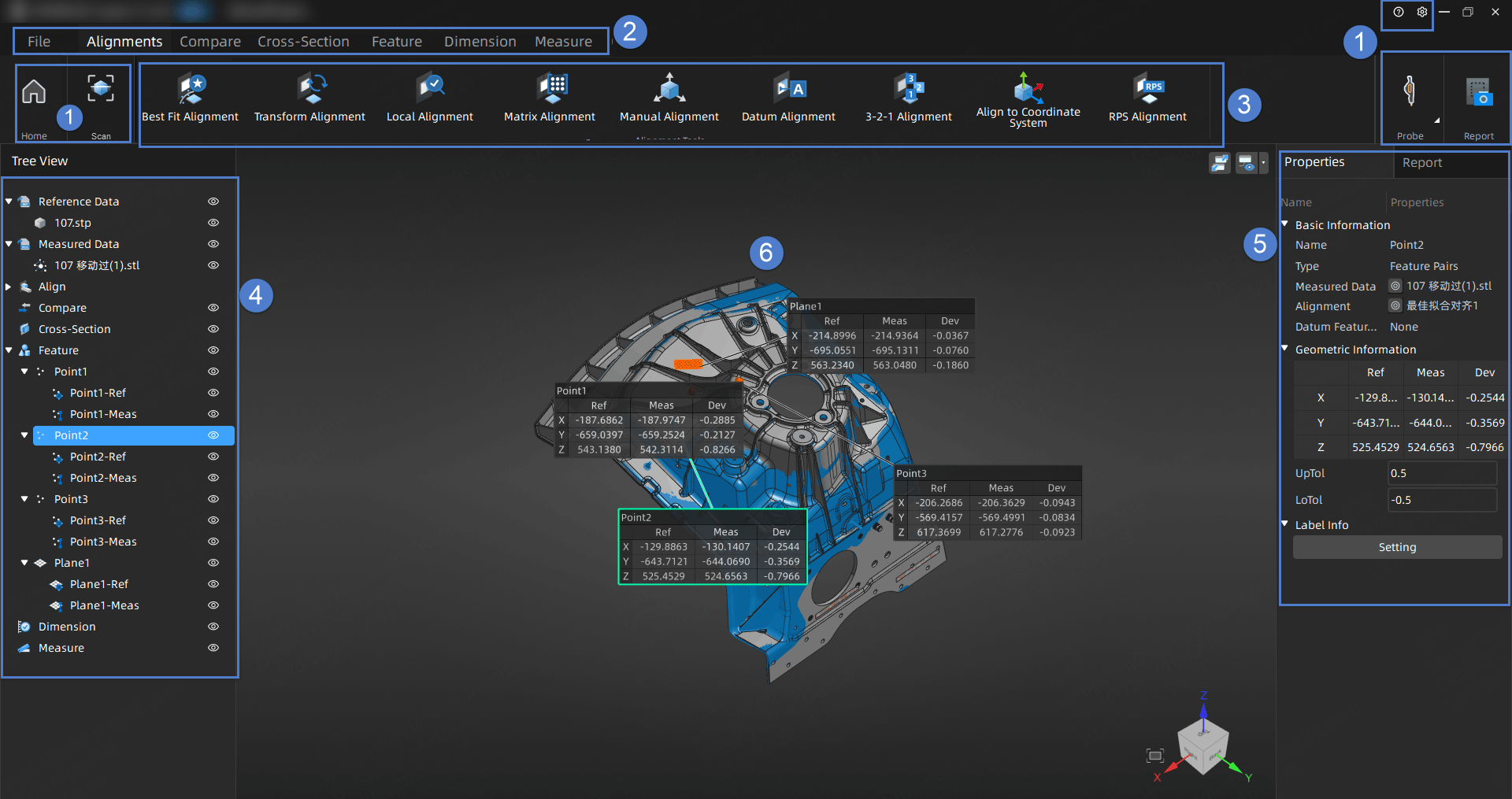

Overview¶
① Buttons¶
Return to SHINING3D Suite homepage and minimize SHINING3D Inspect.
Click this button to expand the drop-down list:
- User Manual: Click to open this user manual.
-
Shortcut Instructions: Click to open the Shortcut Instructions window, which provides instructions on the shortcut keys for model operations and fitting creation.
-
About: Click to open the About window, which displays the software version, release date and other information.
-
Privacy Policy: Click to check the Privacy Policy.
Click this button to open the Setting window:
- Language: Switch the software language to Simplified Chinese, English or Deutsch.
- Auto Extraction of Measured Values: After enabling (disabled by default), when a reference cross-section or feature is created, the software will select the first measured model in the left tree view as the measured object and automatically extract a measured cross-section or feature using the currently activated align object.
Return to the scanning software and close SHINING3D Inspect.
Note
This button is displayed only when SHINING3D Inspect is opened through the scanning software.
② Navigation Bar¶
Click buttons in the navigation bar to enter the corresponding modules: File, Alignments, Compare, Cross-Section, Feature, Dimension, Gauges, Report and Quick Measurement.
③ Tools & Functions Bar¶
Provide tools and their functions in each module. Please refer to the relevant chapters for more details.
When you enable a specific tool, a corresponding settings window will usually be brought up. The icon in the top right corner of the window represents the unlocked status (default), when the window will automatically close after clicking the Confirm or Apply button; If you click to switch to the
locked status, the window will not close after clicking Confirm or Apply.
④ Tree View¶
Display the list of models, alignment groups, comparison groups, feature pairs, measured values, and corresponding created objects.
represents the expanded state of a module / group, and clicking it will switch to
to collapse it.
represents the object in the display state, and clicking it will switch to
to hide it.
Different functionality options are provided in the right-click menu for each module column. Please refer to the relevant chapters for more details.
⑤ Properties¶
Display the property information of the selected objects, including basic information, geometric information, appearance information (supports modifying the model color), statistical information, etc. By switching the selected objects in the tree view, you can switch the displayed information in this panel.
⑥ Model Preview¶
The 3D preview area of the model displays color maps, labels, measured values, etc., according to different functional scenarios. In this area, you can operate the model using keyboard shortcuts. Please refer to the relevant chapters for more details.
Function | |
---|---|
![]() |
Use this button to control the arrangement of labels. |
![]() |
Use this button in the top right corner to toggle the visibility of all labels with one click. Click to expand the menu and choose to show or hide labels for different types. |
![]() |
Use this button to center the model and adjust the view size to fit the screen automatically. |
![]() |
