Turntable Calibration

The dual-axis turntable (optional) must be calibrated before use. The regular turntable does not require calibration.

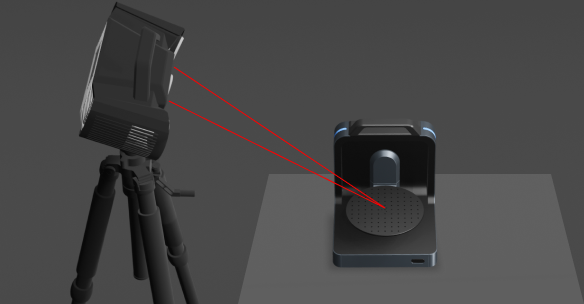

1. Please place the turntable and scanner as shown below:

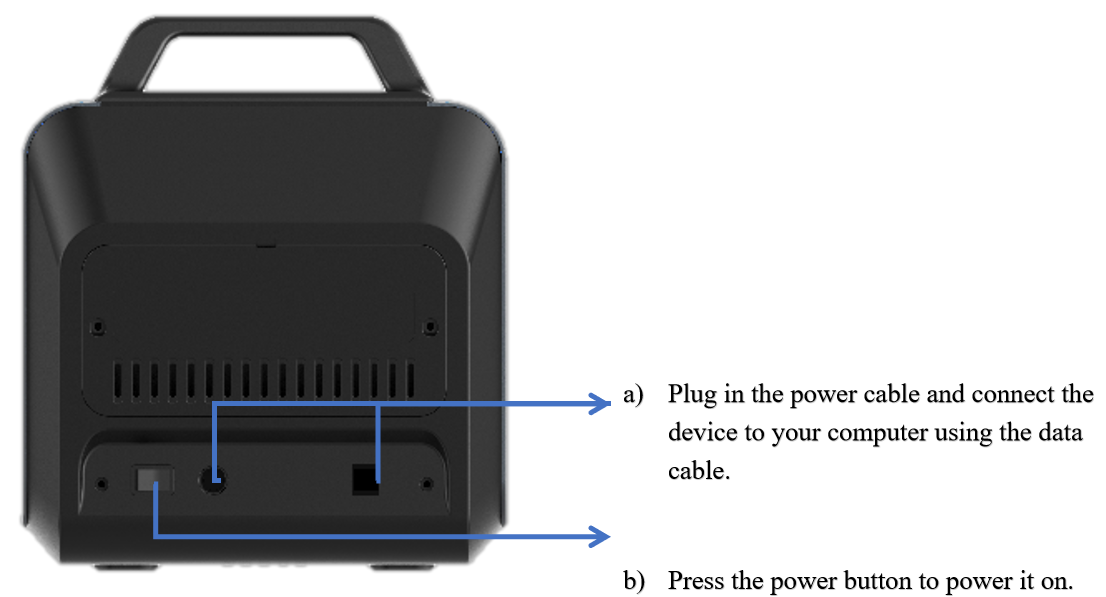

2. Connect the turntable to the computer, power it on, and open the software to create a new project, entering the scanning interface.

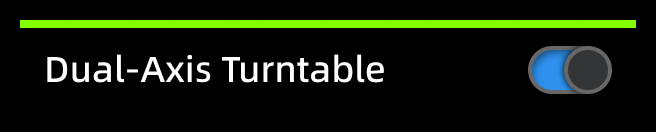

3. Turn on the dual-axis turntable switch, and the turntable scanning guide will appear. Click on Camera Alignment at the bottom to enter the calibration interface.



4. Place 5 unevenly distributed markers inside a 7 mm diameter circle on the turntable surface. A 4 mm marker is recommended.

5. Adjust the scanner height until the laser beams align on the same spot, then click Start Calibration.

6. The turntable will automatically rotate for calibration, and a prompt will appear indicating Turntable Calibration Successful.

7. Click Scan to proceed to scanning.

Caution

Do not move the turntable or scanner after completing the scan.
