Device Connection

Overview:

Caution

  • Please make sure you are using the supplied power adapter.
  • Before opening the software, please start up the device first.
  • If your computer only has a Type-C port, you can use a USB-C to 2.5 Gbps Ethernet adapter to connect.

The steps to connect the device are as follows:

  1. Open the tripod and place it on the ground. You can adjust the height using the extendable legs and the hand crank in the middle before securing it.
  2. Install the scanning head on the cradle head, adjust the direction, and tighten the bolts to fix it.
  3. Adjust the height of the device as needed, and tighten the lock after the adjustment is complete.
  4. Connect the data cable between the scanner and the computer.
  5. After connecting the power cord and adapter, turn on the power.
  6. Use the device power on/off key to start or shut down the device.

Note

Col

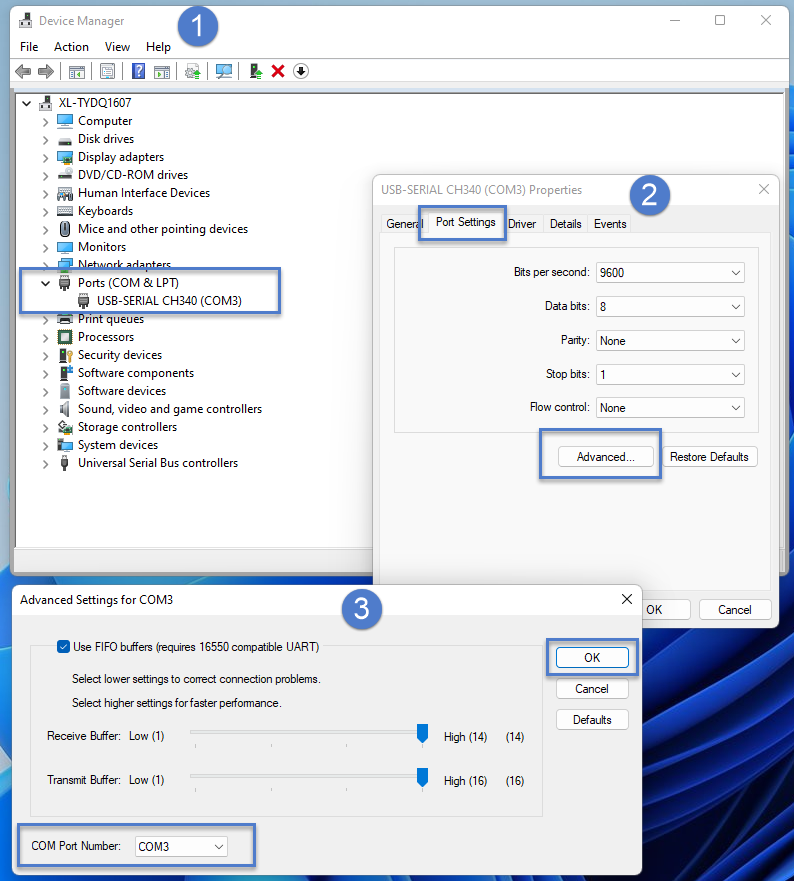

If you use a turntable, you need to connect the turntable power and data cables separately; if you have connected a motorized heavy-duty turntable, please follow the steps as shown in the right figure: open Device Manager > Ports (COM & LPT) > Advanced..., and select a port number below 10 in the COM Port Number section.
