Software Installation

To use the scanner, you need to install the OptimScan Q12 (hereinafter referred to as the "Scanning Software") and SHINING3D Inspect (hereinafter referred to as the "Inspection Software") software first.

Environmental Requirements

Recommended configuration:

Configuration Recommendation
Operating System Window 10 (64-bit) and Window 11 (64-bit).
Processor Intel® Core™ i7-11700 or above.
Note
Improper computer configuration or hardware issues will cause CPU performance degradation and affect the user experience, it is recommended that you use the CPU-Z tool to check CPU performance before starting scanning; for more, please see processor.
Graphics Card NVIDIA RTX 3060 or above.
VRAM 6 GB or above.
RAM 32 GB or above.
Interface USB 3.0.

Processor

Col

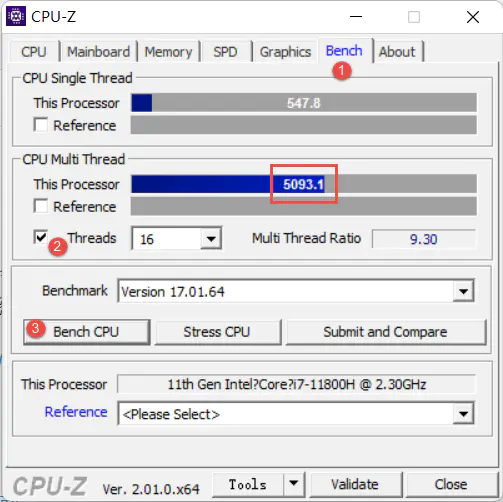

Install and launch CPU-Z, follow the steps in the right figure to get a CPU multi thread performance score. A score of 4000 or more is required.

Note

The software package does not contain CPU-Z software. Please download it yourself.

Col

GPU

Please use a NVIDIA11 discrete graphics card for better and smoother scanning experience.

Note

Col

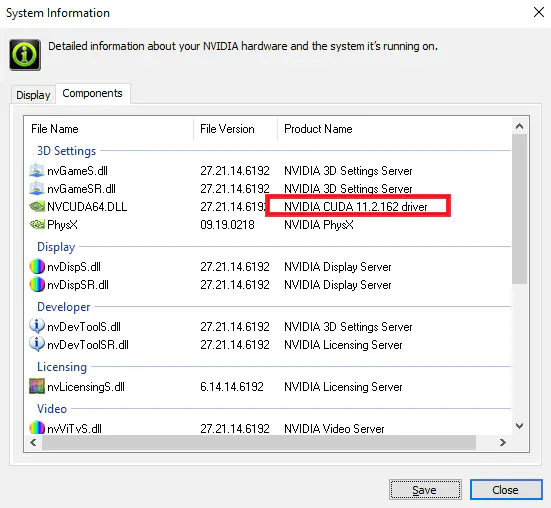

The graphics card should support CUDA 10.2 or above. You can use NVIDIA Control Panel > Help > System information > Components to get the current CUDA version.

Col

Use a discrete graphics card on desktop:

Connect your monitor to the port of discrete graphics card on the back of your computer, and OS will use the discrete graphics card automatically.

Use a discrete graphics card on laptop:

  1. Launch NVIDIA Control Panel on your laptop.

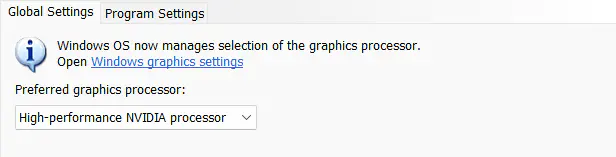

  2. Go to 3D Settings > Manage 3D Settings > Global Settings, select High-performance NVIDIA processor and Apply.

Software Installation

Please use the software from the USB drive included in the device's packaging for installation.

Caution

  • The default installation path is C:\Program Files or C:\Program Files (x86).
  • In the wizard for software installation, TeamViewer is checked by default for bundled installation. After launching the software, you can click > Support > Remote Assistance > TeamViewer to initiate it. If remote assistance is not needed, you can uncheck the TeamViewer option during installation, and it will not be automatically installed along with the software; you can later download TeamViewer independently via the TeamViewer official website.

  1. We use CUDA from NVIDIA to get high scanning experience. ↩
