Remote

This software is compatible with the Logitech R500 remote, which can help you perform related shortcut operations during the Calibration and Scan using the remote control.

For more product information, please refer to the R500 Getting Started Guide.

Remoter Connection

Connect with the USB ReceiverConnect with the USB Receiver

Col

Col

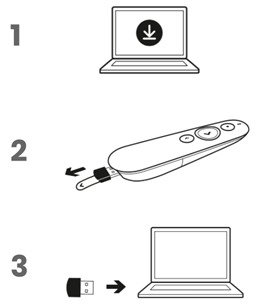

The operating steps are as follows:

1. Download and install the Logi Options+ App.
2. Remove the pull-tab and USB receiver.
3. Plug the USB receiver into a USB port.

Col

Col

The operating steps are as follows:

1. Press and hold the top and bottom buttons at the same time for three seconds. The LED starts blinking rapidly and then is available for Bluetooth pairing for three minutes.
2. Complete the Bluetooth pairing on your computer, tablet or phone.

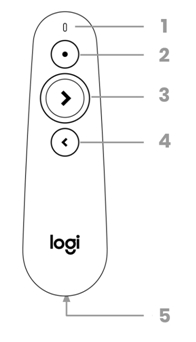

Operation Instructions

No.	Button	Description
1	LED Indicator	Instant feedback on battery and connectivity status.
2	Laser Pointer	Press and hold to activate the laser.
3	> (Next)	In the Calibration step: Click to start the calibration; if a popup is currently open, clicking will toggle the selected button, and clicking again will activate the button. In the Scan step: Click to start scanning; if a popup is currently open, clicking will toggle the selected button, and clicking again will activate the button.
4	< (Back)	In the Calibration step: Click to return to the previous step; if a popup is currently open, clicking will toggle the selected button. In the Scan step: If a popup is currently open, clicking will toggle the selected button.
5	Receiver Storage	The USB dongle receiver can be stored in the remote.
