Interface

After the device is powered on, it defaults to the home page (except for first use), where you can view all project groups and the device status.

Home Page

1. Calibration
   Displays the date of the most recent calibration. Tap to enter the calibration interface.

2. Status Bar
   Displays information about the current device network, temperature, remaining battery, disk space, and system memory usage.

   • : USB drive recognized.

   • : Network connection status. A weak Wi-Fi signal will affect wireless transmission speed.

   • : Hard drive used space and total space. When remaining space is less than 10 GB, the icon will turn red, suggesting to clean up local project group files and clear the cache.

   • : Memory usage ratio. When the ratio > 95%, the icon will turn red, indicating that data processing requires a large amount of memory, and it is recommended to create a new project for scanning.
   • : Device temperature. Red indicates that the temperature is too high. Pause scanning if the temperature exceeds the limit. Before calibration, warm the device to 27°C.
   • : Remaining battery power. When the current power ≤ 20%, the icon will turn red, suggesting to charge or replace the battery.

3. Project Groups
   Displays the names, creation times, and occupied space sizes of all project groups.

4. Settings
   In the settings, you can complete calibration, network settings, and general device settings.

5.
   Tap to create a new project group.

6. Use Template
   Refer to (Scan Template)[./scan/template-scanning.md].

7. Select
   When there are project groups, you can tap Select to manage the project groups.

Control Center

Pulling down from the top of the screen will display the control center. Through the control center, you can quickly access device calibration and other settings.

1. Settings
   Tap to enter system settings.

2. Shutdown
   Taping will pop up a secondary confirmation menu, allowing for restart, reset and shutdown operations.

3. Shortcuts
   : Tap to enter the calibration interface. The calibration date will be displayed after successful calibration.
   : Tap to enter Settings > Network Settings to manage Wi-Fi.
   : Tap to enter Settings > General > Cast to select the mirroring device. : Tap to switch between dark and light themes.
   : Tap to enter the Resource Center.

4. Screen Brightness Adjustment
   Drag the slider to adjust the screen brightness.

5. Volume Adjustment
   Drag the slider to adjust the media volume.

Settings

Tap on ④ on the home page or the control center's to enter the Settings interface.

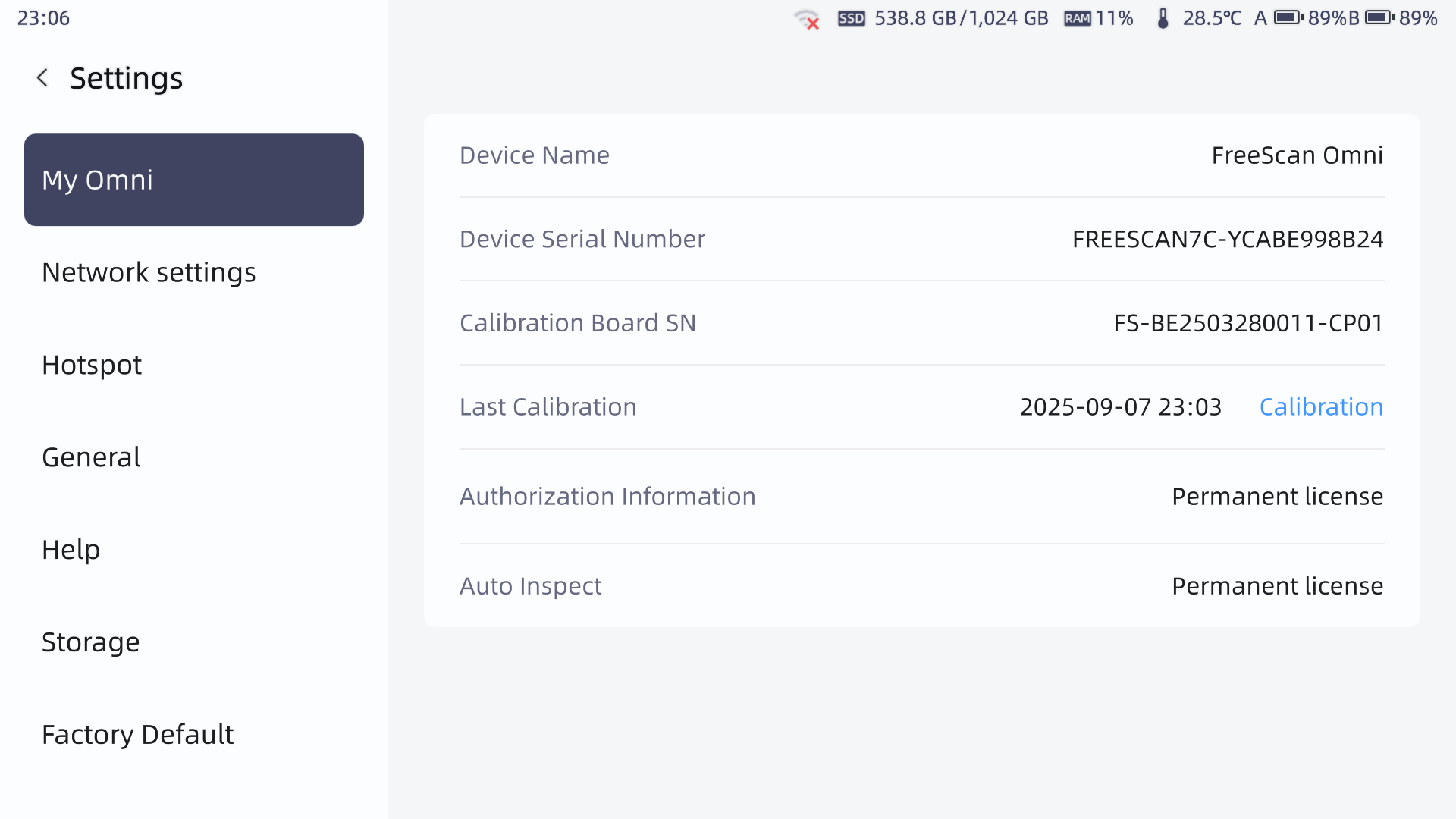

My Omni

Device Information

• Device Name
  The model name of the device.

• Device Serial Number
  The device serial number is the unique identifier for the device, which needs to be provided for after-sales service or technical support.

• Calibration Board SN
  Used for calibration-related operations.

• Last Calibration
  Displays the last calibration time of the device.
  You can tap the Calibration on the right to enter the calibration function interface and complete recalibration.

• Authorization Information
  Display the device's authorization status and expiration time.

• Auto Inspect
  Display the authorization status and expiration time of the inspect function.

Network Settings

Used to manage the device's Wi-Fi connection status and available network list. Through this page, you can view the currently connected network, change the Wi-Fi connection status, and select other available networks.

Hotspot

Through the hotspot, other devices can join the same network for casting or scanning via the FreeScan Omni software.

General

• Temperature Control
  When enabled, the device remains in a warm state during sleep to keep accuracy.

  Caution

  Incomplete warming does not affect the use of calibration and scanning functions, but accuracy may be impacted.

• Scan and Identify Calibration Board Code
  When enabled, you need to scan the calibration board barcode before calibration. This prevents the use of imcompatible calibration baord.

• Scanning Distance Indication Method
  Choose the method of distance indication, which can be either Histogram or Laser Line Indicator.

• Real-time Resolution Display
  When enabled, the scan data will have higher resolution, but may take longer processing time.

• Partial Resolution Circle
  The circle refers to the scan area in partial resolution mode. Changing the circle size changes the size of the scan area.

• Language
  Tap to change the device language.

• Time Zone
  Tap to change the device time zone.

• Auto Sleep
  If the device has not processed data or has not been operated for the set duration, it will automatically enter sleep mode. Pressing the power button will wake the device.

• Cast
  The screen mirroring function supports wirelessly transmitting the content on the scanner's screen to supported devices, such as smart TVs or computer monitors, using Wi-Fi or a hotspot.

  Caution

  When using Wi-Fi for wireless connection, the mirroring device and the scanner must be connected to the same Wi-Fi; if using a wireless connection, the hotspot will be automatically enabled, and the mirroring device should connect to this hotspot.

• DHCP
  When enabled, the device will automatically assign network configuration parameters when connecting to PC software.

• Auto-Connect Dock Wi-Fi
  Once turned off, the device will not automatically connect to the smart dock's WiFi when docked for charging.

• Volume
  Tap to turn the device volume on/off or drag the bar to adjust volume.

• Dark Mode
  Tap to choose between light theme or dark theme.

Help

You can view the QR code for this user manual and find the technical support center.

Storage

• Storage
  Displays the used storage space and remaining storage space of the device.

• Cache
  The cache consists of local logs, images, and other temporary data generated during device use.
  Tap Clear to permanently delete cache data.

  Note

  Clearing the cache will not affect normal use.

Factory Default

Restoring factory default will reset the settings parameters and clear personal information and project data on the device. Please confirm whether you need to clear the data before proceeding.

Note

• If you choose Restore Scan Settings, the current settings parameters will be reset to their initial state.
• If you choose Factory Default, the current logged-in account and settings parameters will be reset to their initial state.
• All project group files can also be selected for synchronization clearing. Please ensure that important data is backed up.

About

You can view the current software and firmware version of the device, and the Privacy Policy and User Experience Program here.
