Device Introduction¶
OptimScan Q12 is a dual-range fixed metrology scanner equipped with a high-resolution industrial lens. It supports rapid switching between measurement ranges and accuracy levels to suit your requirements, and is widely used in high-precision scenarios such as intelligent manufacturing, rail transit, aerospace and mold manufacturing.

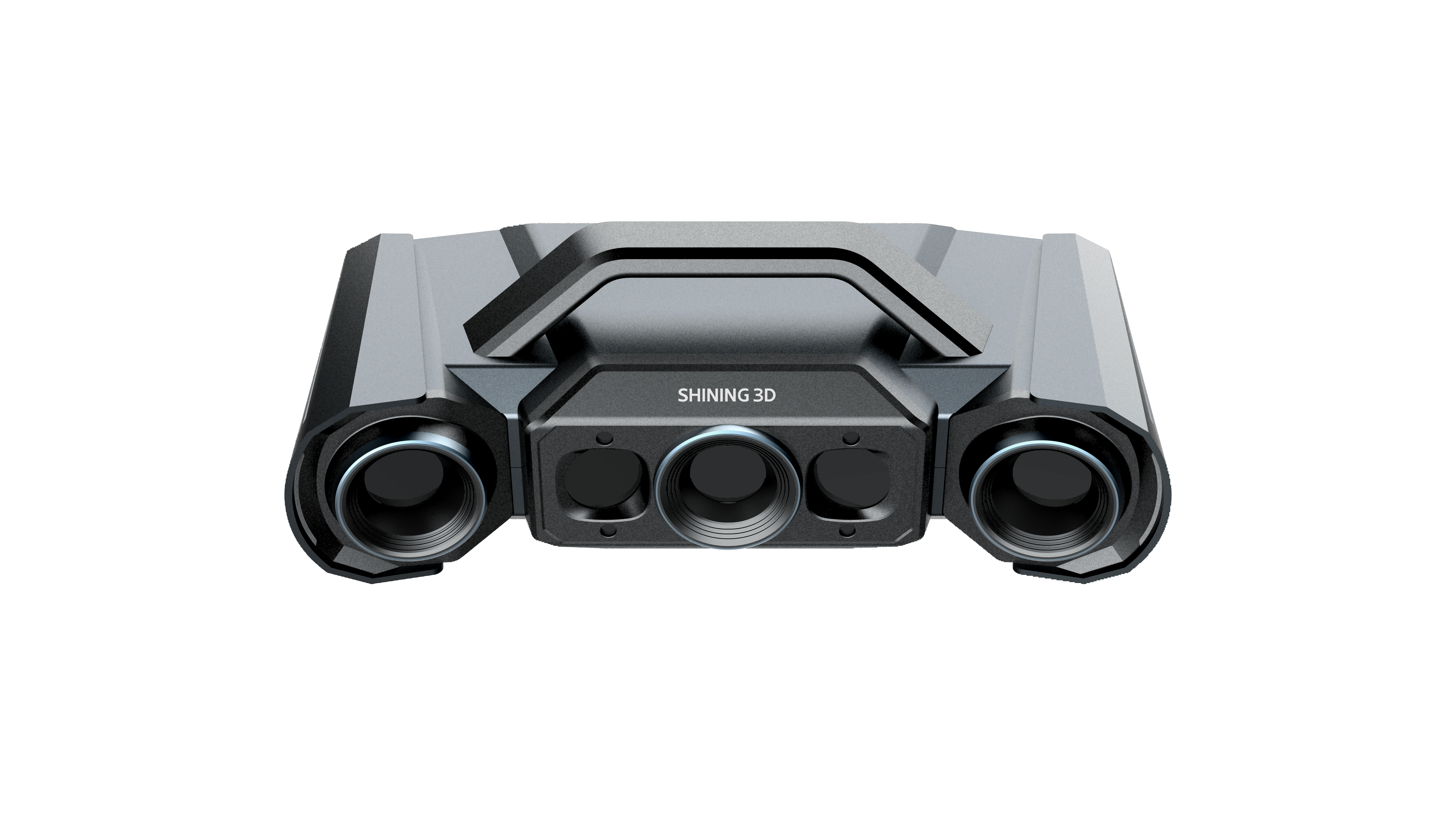

Appearance¶

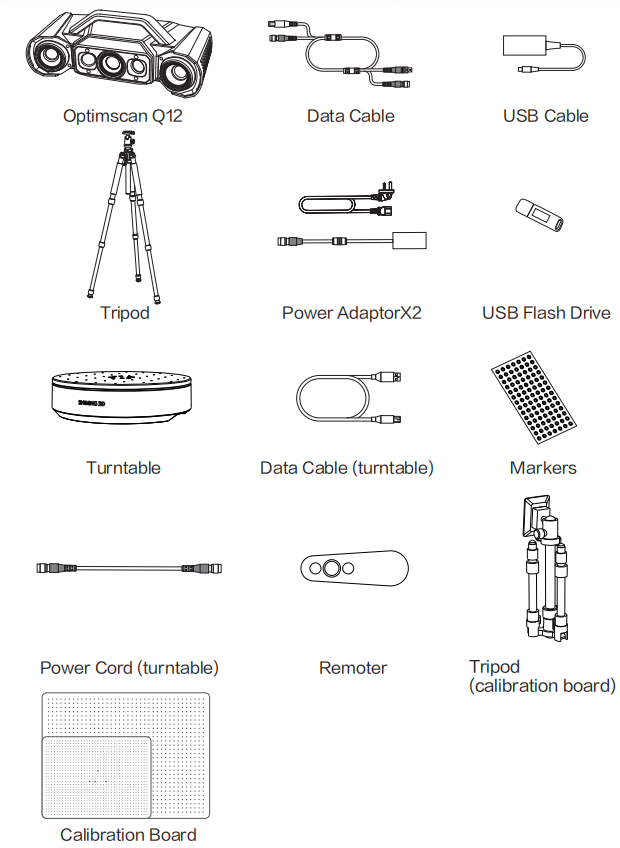

Accessories¶

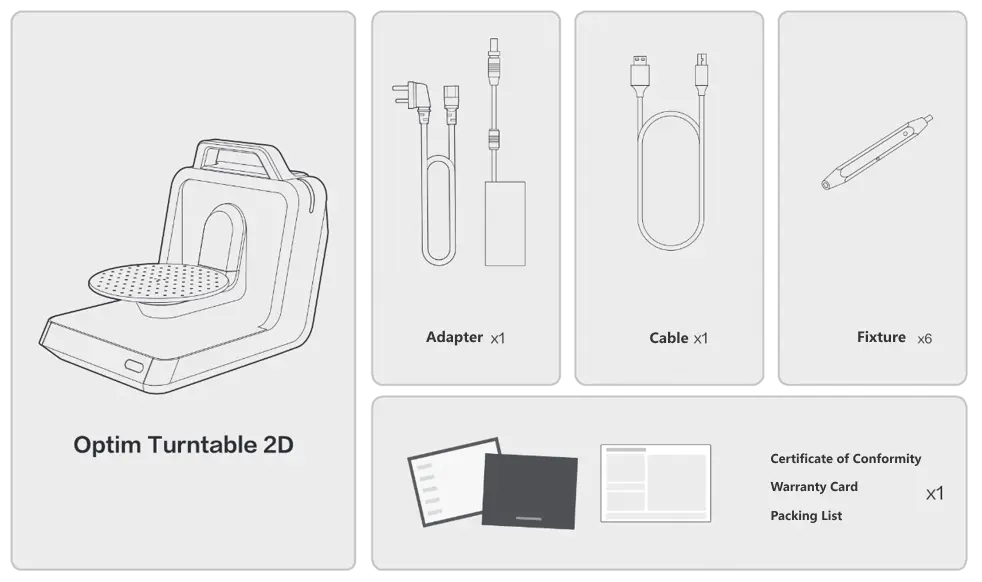

The dual-axis turntable listed below is an optional accessory.
Parameters¶
| Parameter | Description |
|---|---|
| Power Supply | 24 V, 6.67 A |
| Interface | 2.5 G - Ethernet |
Environmental Requirements¶
| Environmental Requirement | Description |
|---|---|
| Storage Environment Temperature Range | -40 ℃ ~ 70 ℃ |
| Storage Environment Humidity Range | 20% ~ 93% RH |
| Working Environment Temperature Range | -10 ℃ ~ 40 ℃ |
| Working Environment Humidity Range | 0% ~ 93% RH |
| Waterproof & Dustproof | IP50 |
