Interface

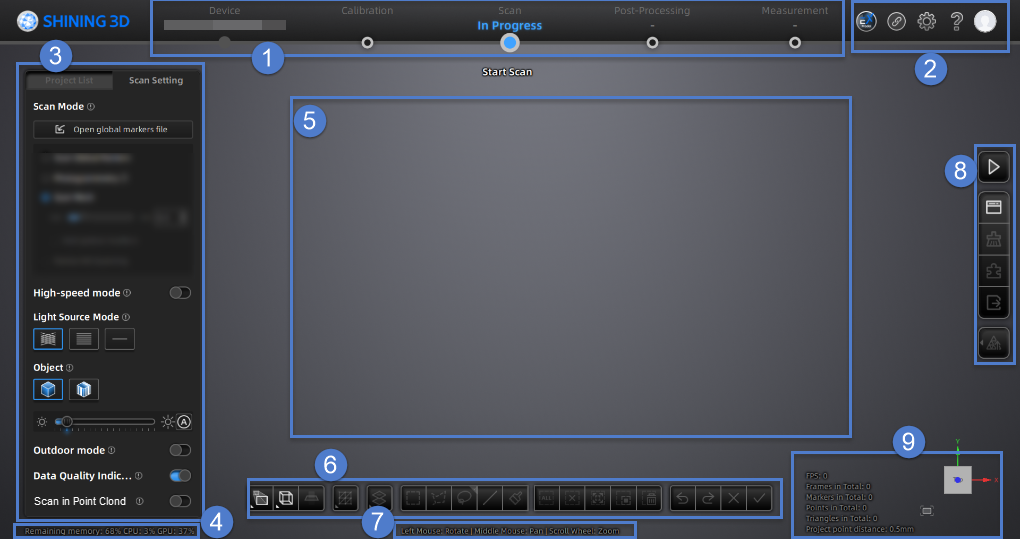

Overview

① Navigation Bar

  • Device: Display the device status: online / offline.
    Device online: Show the device name.
    Device offline: Click to reconnect the device.

  • Calibration: Click on the corresponding position in the navigation bar to start calibration.

  • Scan: Click on the corresponding position in the navigation bar to start the scanning.

  • Post-processing: Click / after scanning, it will go into the post-process interface. You can also click on the corresponding position in the navigation bar to switch to the post-process interface.

  • Measurement tools: Click on the corresponding position in the navigation bar to switch to measure interface where you can measure your model here.

② Settings and Help

View the relevant information for EXModel and our technical support contact.

  • If you have not installed the EXModel, click in the top-right corner and choose the corresponding version on the pop-up window to get it.
  • If you have installed the EXModel, click to directly switch to it.
  • If you have installed the EXModel and you are in the scan (Laser Mode), post-processing or measurement interface with mesh data, click to switch to the EXModel and import the data into it; if there is no mesh data, clicking this button will only switch to the EXModel.
  • Click here to download and learn how to activate EXModel.
  • Click here to learn how can I get access to EXModel.

    • ⑴ General Settings

    • Select Language: Set the language displayed in the software.

    • Preview: You can preview the scanning effect before the actual scanning when enabling the function.

    • Advanced Mode: Enabling the function allows you to choose a smaller resolution when creating a new project. For more, see resolution.

    • Shape Detection Optimization: It can improve the accuracy of sphere diameter but may affect some details of the scanned data.
    • Scanner Tone: Adjust the volume of the scanner's beep sound.
    • Compatible with 3Dconnexion SpaceMouse: When enabled (default), it supports the connection and use of a 3Dconnexion SpaceMouse and related unique functions, including rotation axis and shortcuts.
    • Scanning Templates: The software supports exporting and saving the current scan parameter settings as a template / as templates, which can be imported for scanning the same scene. The file saving format is templ_*.

    Caution

    • The template file currently does not support saving the brightness parameters in the scan global markers mode and the photogrammetry mode.
    • If the Comfirm button is not clicked after setting the parameters during the meshing process, the exported template will not include the parameter settings from the meshing interface.

    ⑵ Laser Scan Settings

  • Scanning distance indication method: There are two methods to indicate the scanning distance.
    During scanning, you can adjust the scanning distance based on the color indication. Here is the color code for distance adjustment:
    Blue: It indicates that the scanning distance is too far.
    Green: It indicates that the distance is proper.
    Red: It indicates that the scanning distance is too close.
    By observing the color of the laser line or distance bar, you can make adjustments to ensure the scanning distance is appropriate.

    Col

    Laserline Indicator

    Col

    Scanning Distance Indicator

  • The Laser Line Closes Intelligently: If the scanner fails to recognized enough markers, it will not project the laser line during scanning when enabling the function.

    ⑶ Third-party Software Setting: You can select the third-party software to be launched and the path. Only the selected third-party software will be displayed in the third-party software list in the post-processing and measurement interfaces.

    ⑷ Factory Default: Click Recover to initialize all settings and the software will automatically restart.

    • ⑴ About: You can view device name, serial number, calibration board, software version information, etc.; After checking Download UPdates Automatically, when a new software version is detected, it will be automatically downloaded and prompt you to install it. Otherwise, you will need to manually download and update the software to the new version.

    ⑵ System Diagnose: Check whether computer configuration meet the operating conditions. If it shows , it means that the configuration meets the operation requirements. If not, please repair the problem according to the interface prompts. Click Refresh to diagnose again.

    ⑶ Support: You can open the user manual, get remote assistance and check contact information of technical support here.

    • Reverse Engineering Service: By sending us the scanned project files and specific information, you can get our assistance in the reverse engineering.
    • Account: You can view login status, account information, and authorization period.
    • Login: You can log in / log out of your account.
    • My SHINING 3D Account: Click to enter the personal center.
    • Official Website: Click to visit the SHINING 3D official website for more products and information.
    • Facebook: Enter SHINING 3D's Facebook to view product introduction and other operations.

    ③ Scanning Settings

    • Camera Windows: To preview the actual scene during scanning. Parameters can be adjusted accurately through the camera window.

    • Project Group: To manage projects and the project group. For more, see Project and Project Group.

    • Scanning Parameters: To set scanning parameters. For more, see Settings.

    ④ Memory / CPU / GPU

    • Remaining Memory: To display the percentage of remaining memory.
    • CPU Usage: To display the CPU Usage of the computer in real time. You may need to close other unrelated software if it is too high.
    • GPU Usage: To display the GPU Usage of the computer in real time.

    ⑤ Preview / Scanning Window

    To preview the model and check the scanned model.

    ⑥ Edit Toolbar

    To edit data after scanning. See more details in Data Editing.

    ⑦ Shortcuts

    To change the perspectives and move the model by the composition of keys.

    ⑧ Side Toolbar

    For more, see Scanning and Other Functions.

    ⑨ Other Information

    To show information about FPS, Frames in Total, Points in Total, etc.

    Fit View:
    Click to center the model and adjust the view size to fit the screen automatically.

    View Controller:

  • When adjusting the model, a coordinate system reference is provided.
  • You can quickly adjust the model view by clicking on different faces of the view controller.
