Interface

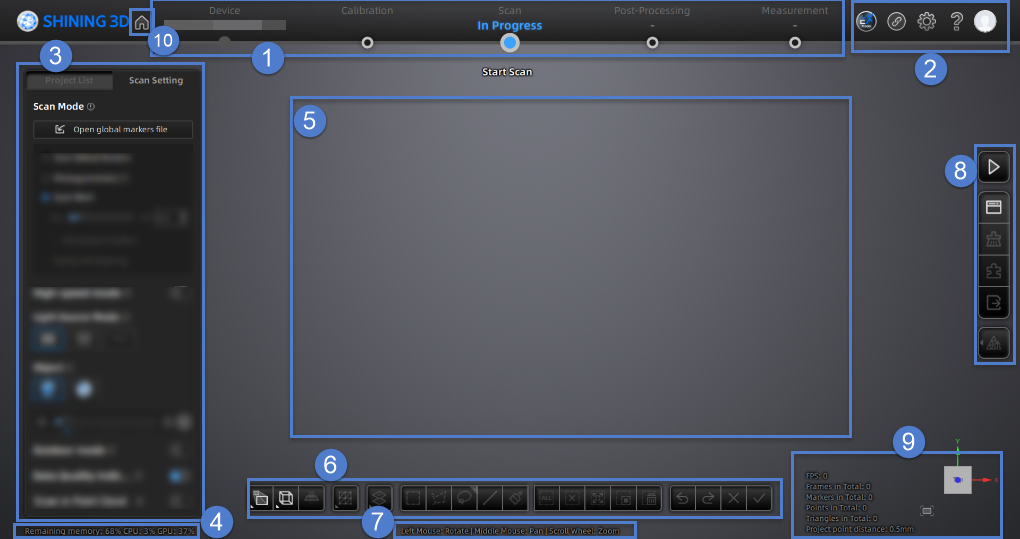

Overview

Note

The screenshot shown above is for illustrative purposes only. Always refer to the actual software interface.

① Navigation Bar

  • Device: Display the device status as online / offline.

    • Device Online: Show the device name.
    • Device Offline: Click to reconnect the device.

  • Calibration: Click on the corresponding position in the navigation bar to start calibration.

  • Scan: Click on the corresponding position in the navigation bar to start the scanning.

  • Post-Processing: Click / after scanning, it will go to the Post-Processing interface. You can also click on the corresponding position in the navigation bar to switch to the Post-Processing interface.

  • Measurement: Click on the corresponding position in the navigation bar to switch to Measurement interface where you can measure your model here.

② Settings and Help

View the relevant information for EXModel and our technical support contact.

  • If you have not installed the EXModel, click in the top-right corner and choose the corresponding version on the pop-up window to get it.
  • If you have installed the EXModel, click to directly switch to it.
  • If you have installed the EXModel and you are in the Scan (Laser Mode), Post-Processing or Measurement interface with mesh data, click to switch to the EXModel and the data will be imported into it automatically; if there is no mesh data, clicking this button will only switch to the EXModel.
  • Click here to download and learn how to activate EXModel.
  • Click here to learn how can I get access to EXModel.

    • Pairing Guide: You can refer to the wired / wireless pairing guide in the pop-up to complete the pairing process; if there are issues with pairing, please contact technical support promptly. For specific pairing operations, please refer to Device Pairing.

    ⑴ General Settings

    • Select Language: Set the language displayed in the software.
    • Preview: You can preview the scanning effect before the actual scanning when enabling the function.

    • Shape Detection Optimization: Before creating a project, you can enable this function. After that, the scanning accuracy can be improved in the cross-line scan mode; however, enabling this function may affect the frame rate and make the scanned data file larger.

    • Scanner Tone: Adjust the volume of the scanner's beep sound.

    • Compatible with 3Dconnexion SpaceMouse: When enabled (default), it supports the connection and use of a 3Dconnexion SpaceMouse and related unique functions, including rotation axis and shortcuts.
    • Scanning Templates: The software supports exporting and saving the current scan parameter settings as a template / as templates, which can be imported for scanning the same scene. The file saving format is xxx.templ_*.

    Caution

    • The template file currently does not support saving the brightness parameters in the scan global markers mode and the photogrammetry mode.
    • If the Comfirm button is not clicked after setting the parameters during the meshing process, the exported template will not include the parameter settings from the meshing interface.

    ⑵ Laser Scan Settings

  • Scanning distance indication method: There are two methods to indicate the scanning distance.
    During scanning, you can adjust the scanning distance based on the color indication. Here is the color code for distance adjustment:
    Blue: It indicates that the scanning distance is too far.
    Green: It indicates that the distance is proper.
    Red: It indicates that the scanning distance is too close.
    By observing the color of the laser line or distance bar, you can make adjustments to ensure the scanning distance is appropriate.

    Col

    Laserline Indicator

    Col

    Scanning Distance Indicator

  • The Laser Line Closes Intelligently: If the scanner fails to identify enough markers, it will not project the laser line during scanning when enabling the function.

    ⑶ Third-party Software Setting: You can check the third-party software to be called up and select the calling path. Only the selected third-party software will be displayed in the third-party software list in the Post-Processing and Measurement interfaces.

    ⑷ IP Configurator: When the device cannot be used normally due to the network IP issue, you can open the IP Configurator and select the correct NIC Name (Ethernet or WLAN).

    ⑸ Factory Default: Click Recover to initialize all settings and the software will automatically restart.

    • ⑴ About: You can view device name, serial number, calibration board, software version information, etc.; After checking Download UPdates Automatically, when a new software version is detected, it will be automatically downloaded and prompt you to install it. Otherwise, you will need to manually download and update the software to the new version.

    ⑵ System Diagnose: Check whether your computer configuration meets the running requirements. If appears, it means that the configuration meets the requirements. If appears, it means that there are some issues need to be resolved. Click Refresh to diagnose again.

    ⑶ Support: You can open the user manual, get remote assistance and check contact information of technical support here.

    Note

    Col

    If the software displays a pop-up stating "No S3D_TeamViewer detected" when you use remote assistance function, you can click Select Path in the dialog box and choose TeamViewer's .exe file to manually update the launch path for TeamViewer.

    Col

    • Reverse Engineering Service: By sending us the scanned project files and specific information, you can get our assistance in the reverse engineering.
    • Account: You can view login status, account information, and authorization period.
    • Login: You can log in / log out of your account.
    • My SHINING 3D Account: Click to enter the personal center.
    • Official Website: Click to visit our official website for more products and information.
    • Facebook: Enter our Facebook to view product introduction and learn other operations.

    ③ Scanning Settings

    ④ Memory / CPU / GPU

    • Remaining Memory: To display the percentage of remaining memory.
    • CPU Usage: To display the CPU Usage of the computer in real time. You may need to close other unrelated software if it is too high.
    • GPU Usage: To display the GPU Usage of the computer in real time.

    ⑤ Preview / Scanning Window

    To preview the model and check the scanned model.

    ⑥ Edit Toolbar

    To edit data after scanning. See more details in Data Editing.

    ⑦ Shortcuts

    To change the perspectives and move the model by the composition of keys.

    ⑧ Side Toolbar

    For more, see Scanning and Other Functions.

    ⑨ Other Information

    To show information about FPS, Frames in Total, Points in Total, etc.

    Function
    Description

    Fit View    		 Click to center the model and adjust the view size to fit the screen automatically.

    View Controller
  • When adjusting the model, a coordinate system reference is provided.
  • You can quickly adjust the model view by clicking on different faces of the view controller.
    		•

    ⑩ Home Page

    Click to quickly return to the home page.
