Activation and Connection

Before using the scanner, activate it by logging into the SHINING 3D passport: Power On > Connect to Network > Register / Login.

Note

Devices that are not activated cannot upload or export projects.

Battery Installation

Col

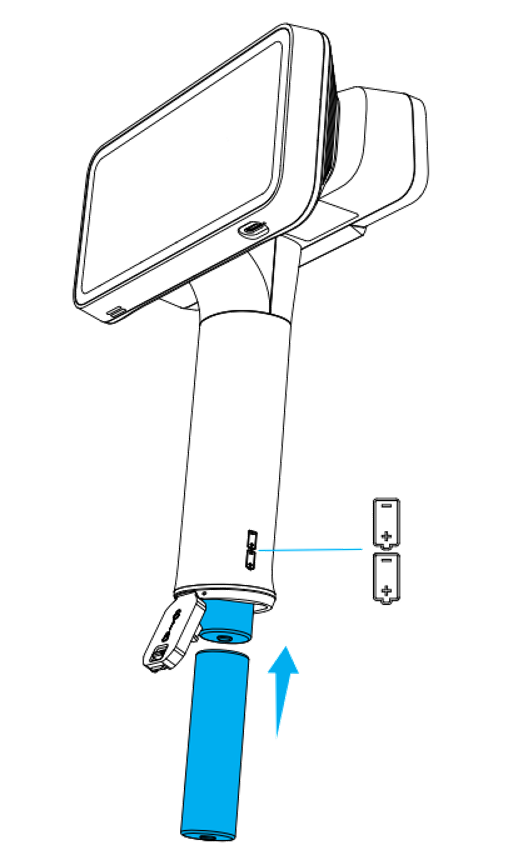

Please open the battery compartment and insert the batteries first.

Caution

  • Please place the batteries correctly according to the positive and negative directions shown in the diagram.
  • Please insert two batteries with a power difference of no more than 10% to avoid excessive battery voltage due to a large power difference, resulting in unclear power indication or automatic shutdown due to low power.

Col

Power On

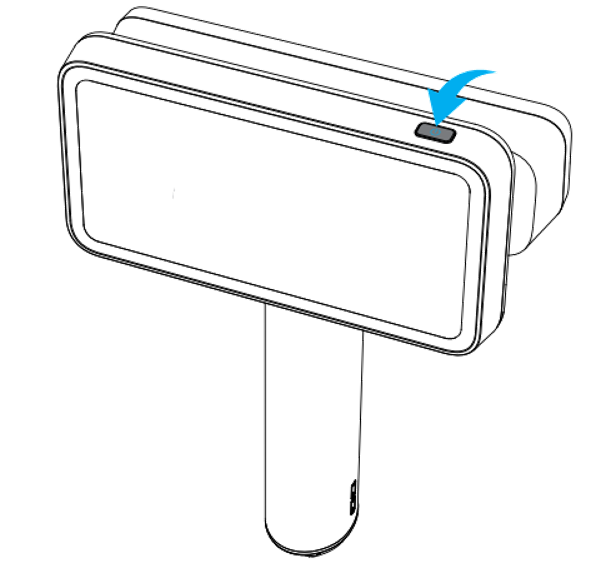

Press and hold the power button (for about 2 seconds) until the screen displays the startup animation, indicating that the scanner has powered on successfully.

Note

If the scanner stays black or shows a charging prompt, please charge it promptly.

Power Off

  • Press and hold the power button for approximately 3 seconds to bring up the shutdown interface, where you can choose to restart or power off.
  • Press and hold the power button for approximately 6 seconds to force shutdown.

Connect to Network

After entering the network connection interface, the scanner will automatically search for available wireless networks (every 10 seconds). Tap the corresponding network to connect; if you need to disconnect from the network, press and hold the connected network and select Delete Network.

Note

  • After connecting to the network, tap Next Step to register or log into the SHINING 3D passport.
  • If there is a network connection error, please retry or switch networks; if the issue persists, please restart the scanner.

Register / Login

Col

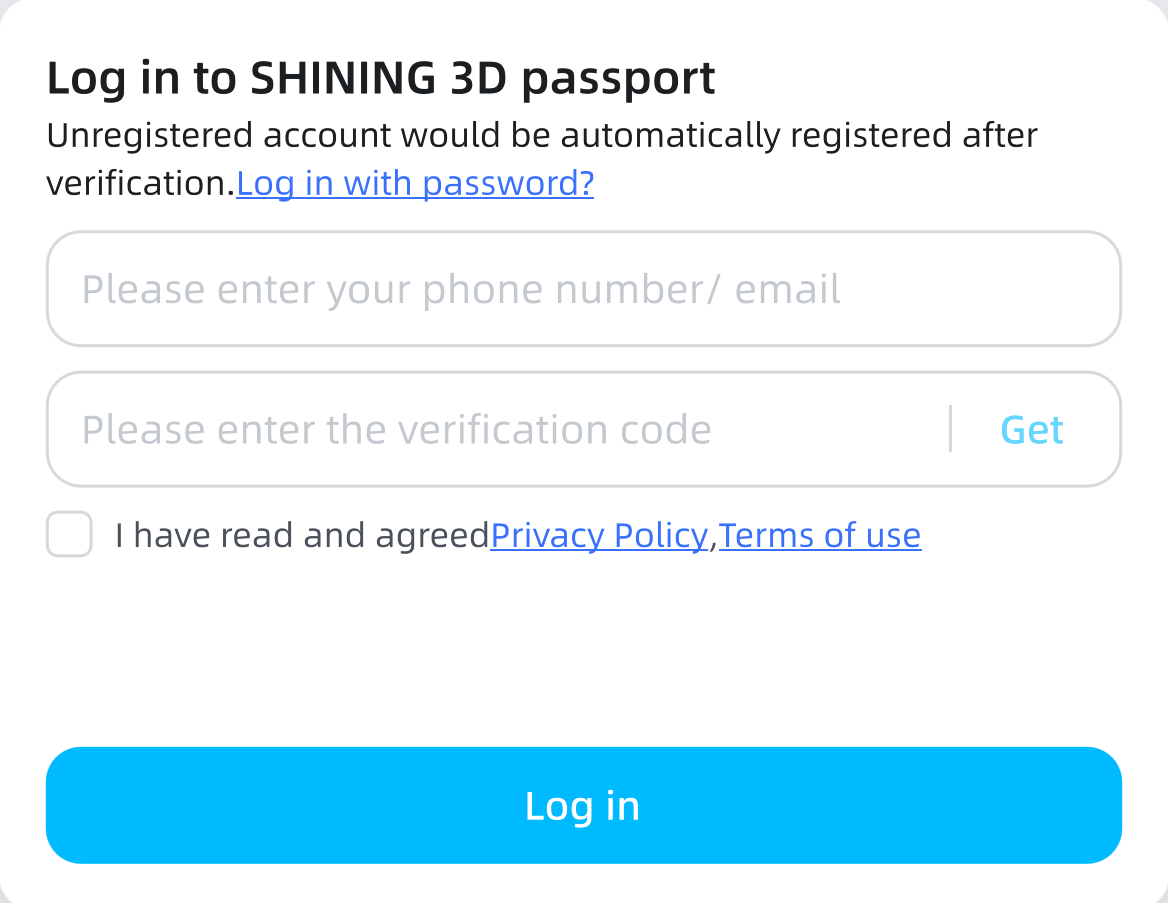

After entering the SHINING 3D Passport login interface, you can choose to log in with a verification code or password.

Col

Note

  • Successfully logging into the passport indicates that the scanner has been activated.
  • The warranty period starts after activation.
  • If this is your first login, it is recommended that you use the verification code login; registration will be completed automatically after a successful login.

Connection

The device supports both wired and wireless connections to a computer. Once connected, you can use ExScan Medixa to perform tasks such as online scanning and exporting project files.

Note

  • Device connection is unavailable while scanning with EinScan Medixa.
  • If screen casting is in progress on EinScan Medixa, screen casting will terminate automatically upon entering the equipment connection page, and new screen casting sessions cannot be initiated.

Swipe down from the top of the scanner screen to open the control center, then tap to access the ExScan Medixa connection page. Select Wireless Connection or Wired Connection.

Note

  • This function is available only after device activation.
  • This entry will be greyed out under the following conditions:
    • From scan start to project saving;
    • When a project is opened from the model library and the post-processing page is loaded;
    • During calibration;
    • During QR code scanning (station QR codes, calibration plate QR codes, etc.).

Wireless Connection

Note

After entering the connection page, EinScan Medixa will automatically enable its hotspot. The scanner’s wireless hotspot name and password will be displayed on this page.

  1. On your computer, search for and connect to the scanner hotspot.

    Note

    If the computer fails to detect the scanner hotspot, swipe down from the top of the scanner screen to open the control center, go to > Wireless Hotspot, then toggle the hotspot off and on again.

  2. Once the connection is successful, you can use the computer to perform operations such as online scanning and exporting project files.

Wired Connection

Connect to Software

  1. Connect the devices using the USB-C data cable supplied with the product.
  2. The software will automatically connect to the scanner once it is detected.
  3. Once the connection is successful, you can use the computer to perform operations such as online scanning and exporting project files.

Note

Launch the software first, then connect the scanner to the computer via the supplied USB-C cable. If the scanner is already connected to the computer before software startup, unplug and reinsert the USB-C cable after launching the software.

USB Drive Mode

  1. Connect the device to the computer using the USB-C data cable supplied with the product.
  2. Once connected, file transfer between the computer and the device is supported.

Note

  • Tap Connect to ExScan Medixa to automatically exit USB Drive Mode.
  • Direct access via the system file explorer is only supported on Windows. For macOS, install third-party software (e.g., OpenMTP) before exporting projects.
