Device Introduction

EinScan Medixa equipped with three sets of high-quality VCSEL projectors adopts both LED light and infrared VCSEL as light sources, and features a 5-million-pixel high-resolution texture camera. It possesses capabilities such as high color restoration, detail capture, adaptation to different lighting environments and materials. Coupled with a wide scanning area, it is suitable for various sizes, materials, and scenes.

Packing List

Col

Battery (Consumable)

3 mm and 6 mm Markers

Col

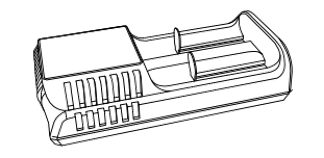

Battery Compartment (Consumable)

USB-C Charging Cable (Consumable)

Col

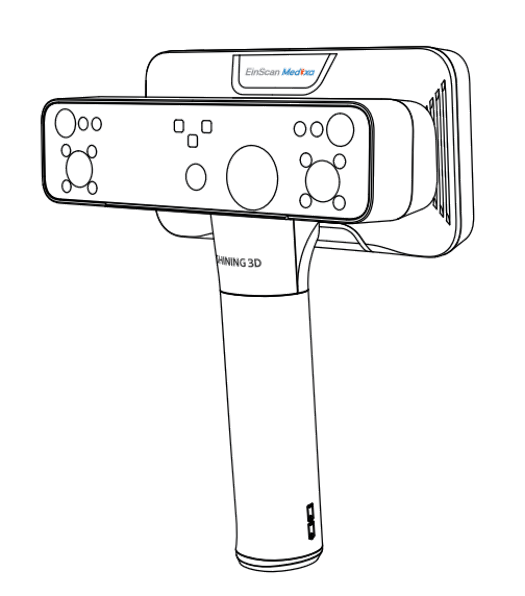

EinScan Medixa 3D Scanner

Col

USB-C to USB-C Cable for Scanner

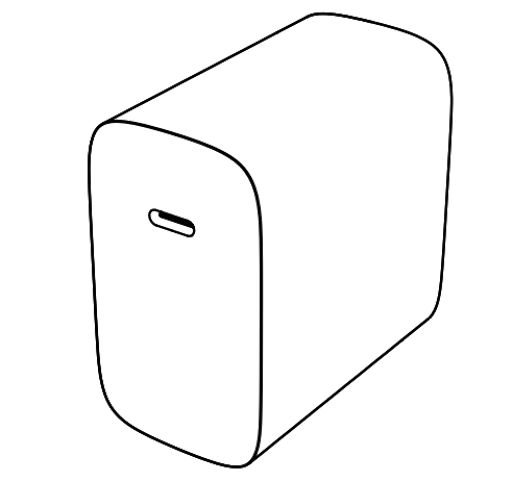

Power Adapter

Col

Calibration Board and Universal Holder

Col

Calibration Board

Col

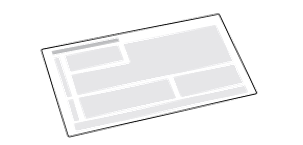

Packing List

Col

Cleaning Cloth

Note

If you need to clean the device housing, gently wipe it with a cleaning cloth or a soft cloth. Do not use chemicals or alcohol.

Structure and Components

Col

Col



No. Structure and Components

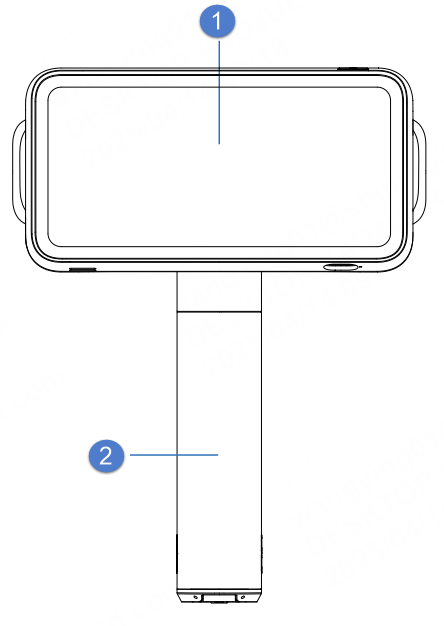

① AMOLED Screen
② Handle and Battery Compartment

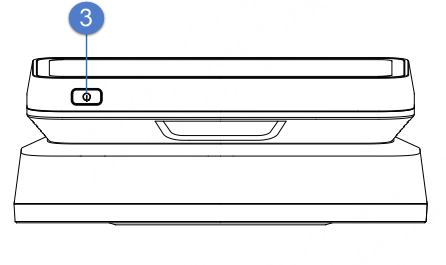

③ Power Button

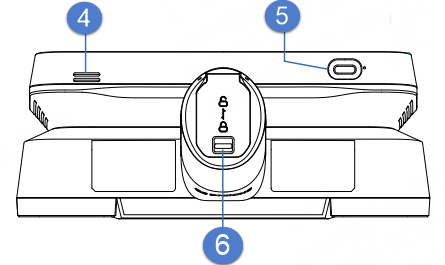

④ Sound Hole
⑤ USB-C Port
⑥ Battery Compartment Switch

Battery Specifications and Requirements

Specifications Description
Type Rechargeable lithium-ion battery
Length 75.4 ± 0.3 mm
Diameter 21.7 ± 0.3 mm
Nominal Voltage 3.6 V
Capacity 5500 mAh
Cycle Life Over 400 times
Operating and Storage Requirements Description
Operating Temperature Charge: 0 ~ 45℃
Discharge: -20 ~ +60℃
Storage / Transport Temperature -20 ~ +45℃ (less than 1 month)
-20 ~ +35℃ (less than 3 months)
-20 ~ +25℃ (less than 6 months)
Storage / Transport Relative Humidity ≤ 75%RH

Laser Information

Complies with FDA performance standards for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No.56, dated May 8, 2019.
