Compare

Click Compare in the top navigation bar to enter the compare module, where you can perform 3D comparison, displaying the deviation between the measured model and the reference model. Besides, you can also create comparison points on the color map.

Note

Before using the 3D compare function, please import the reference model and the measured model and align them.

3D Compare

Col

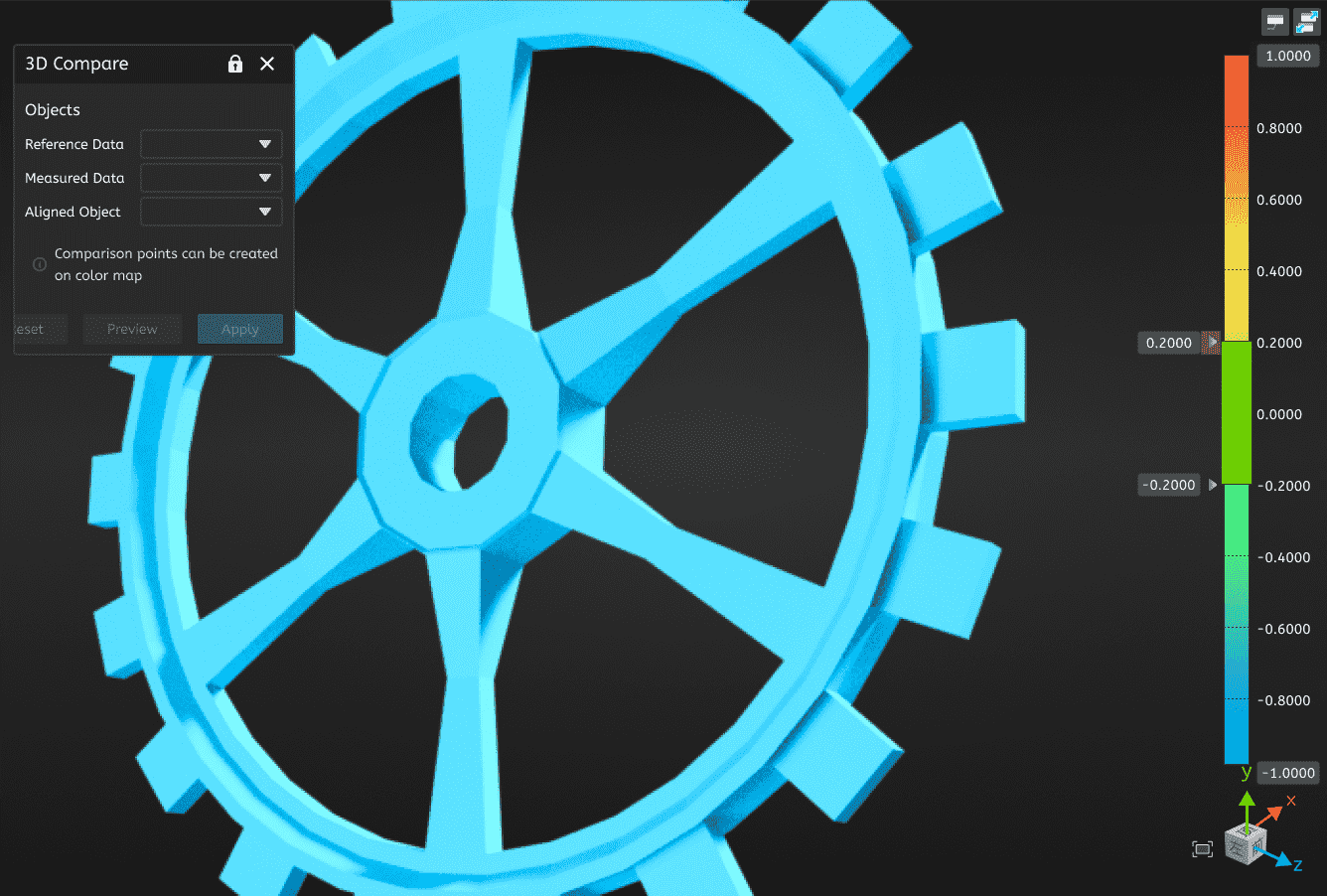

1. In the Alignment Tools bar, click3D Compare to open the corresponding window.
2. Select the reference data and measured data to be aligned, and choose an aligned object.
3. Click Preview to display the 3D color map in the scene and chromatogram (where you can adjust the upper / lower tolerance) in the right; Then click Preview to save the 3D compare object, which will be displayed in the compare module in the left-side tree view.
   Note
   • As the 3D compare object is associated with the aligned object, the 3D compare object can only be checked when the associated align object is activated.
   • Multiple 3D compare objects can be created for one aligned object, and each 3D compare object has one individual chromatogram.
4. (Optional) In the preview state, you can click on the 3D color map in the scene to create comparison points, or right-click on one 3D compare object in the tree view, click Edit Comparison Points, and click on the 3D color map to create; For the created comparison points, you can use left-button to drag or use Del to delete.

Col

Chromatogram

On the right-side chromatogram, you can enter values by double-click to adjust the tolerance scope and the upper / lower tolerance; You can also drag up and down to adjust the tolerance scope.

When adjusting values, the 3D color map in the scene will be updated in real time.
