Preparation

Precautions

  • Ensure the device is connected successfully.
  • Ensure the lens is free of scratches or damages.
  • Ensure the object to be scanned is in the tracker's field of view.
  • In wireless mode, ensure the scanner has sufficient power.
  • Ensure the work area is clean, without other moving objects or items that may interfere with scanning.
  • Do not touch the lens with your fingers to avoid leaving fingerprints that may affect data acquisition.
  • In Track Mode, do not cover, touch, or damage the balls on the scanner when it is working.
  • If the tracker is placed on a tripod, ensure the connection between the tracker and the tripod is secure and stable.
  • When performing single-station scanning with the scanner in Track Mode, ensure that the tracker and the scanned object do not move.

Marker Placement

When performing leapfrog scanning in Track Mode or standalone scanner scanning > marker alignment, markers need to be applied. The following are precautions for marker placement:

  • Do not place markers on surfaces with high curvature.
  • Do not use damaged, dirty, or incomplete markers.

  • Place markers as evenly as possible, and ensure there are at least 4 markers in the common area.

    Col

    Markers are attached correctly

    Col

    Artificial grouping of markers

    Col

    Markers placed in a straight line

  • If the object to be scanned is too small, secure the object on a workbench and place markers on the workbench.

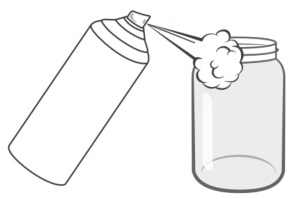

Powder Spraying

For scanning transparent and light-absorbing objects such as glass, you can use a professional developer spray on the object surface.
