Layout and Support

On the Layout & Support page, all uploaded models will be processed with auto layout and added supports, and supports one-click slicing and sending to print.

Note

  • You can return to the File step after auto layout & support; if you add, duplicate, delete models, or modify application settings, you need to re-layout and add supports.
  • If you exit the current page after the layout & support process is complete, a pop-up reminder will appear; and when entering the Slicing page again, you can directly proceed with the incomplete slicing procedure by following the pop-up instruction.

Caution

  • During the auto layout & support process, any other operations are not supported and the process can not be cancelled.
  • If an error pop-up occurs during the auto layout & support process, please follow the prompts to open/download the AccuWare to continue the slicing process.

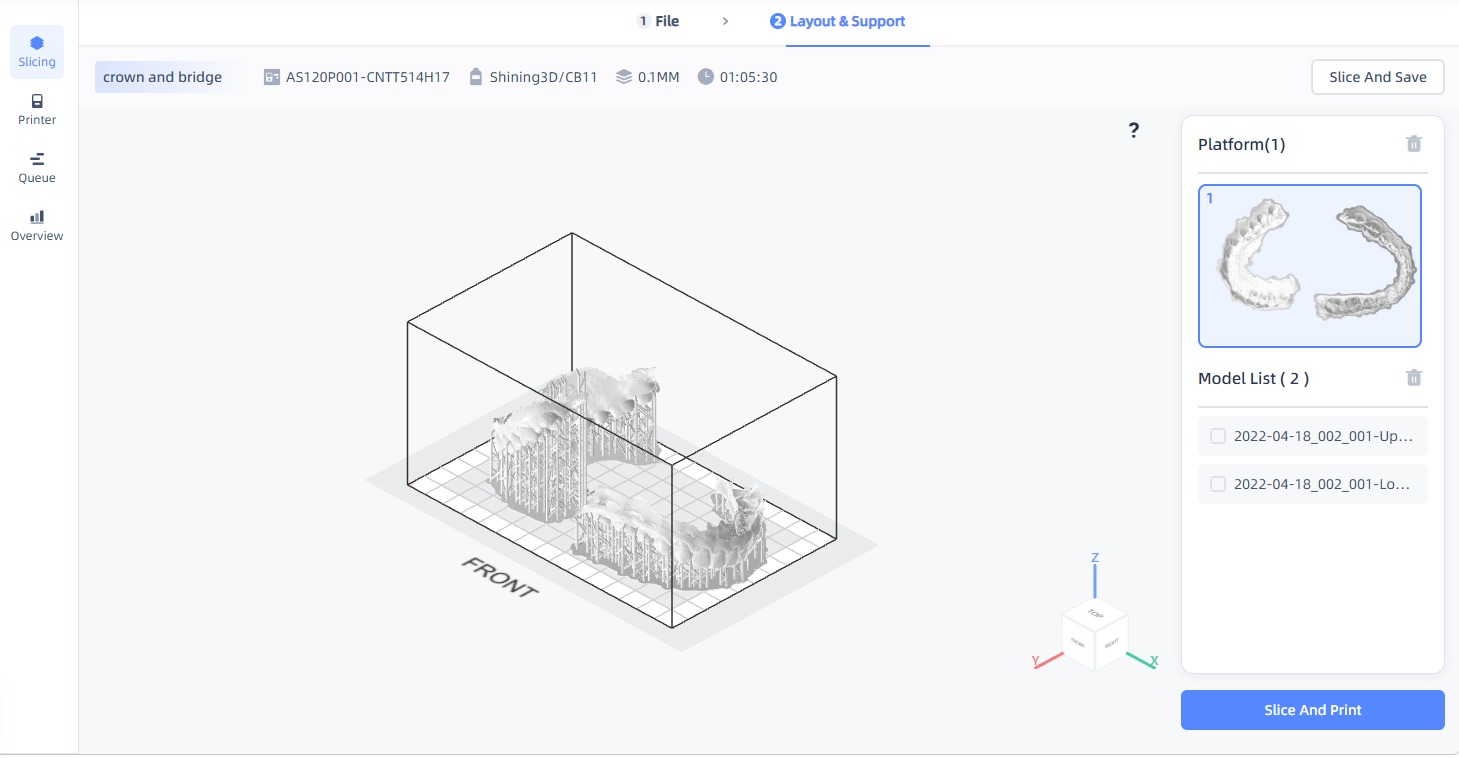

Interface Introduction

Display application type, printer serial number, resin, mode and predicted printing time1.

Click Slice and Save or Slice and Print button to enter the slicing process, and supports saving the slice file locally or sending the slice file to queue.

After auto layout & support, you can view the thumbnails of the models automatically distributed to platform(s) in the Platform list on the right side.

The Model list displays the models distributed to the currently selected platform.

Note

The first platform is selected as default; if the number of platforms exceeds 4, you can slide to view more platforms.

For the introduction to icon buttons, please see file.

For the introduction to platform operation, please see file.

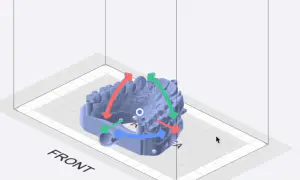

Support manual operation of models to change layout and support:

  • Move model (universal): Select the model, press the center point of the model and drag.
  • Translate model: Select the model, press the arrow and drag.
  • Rotate model: Select the model, press the axis and drag.

Caution

  • If some models are outside the platform after auto layout (shown in red), these models cannot be printed properly.
  • If you manually adjust the model layout, please confirm whether to regenerate model supports; among them, moving the model outside the platform (shown in red) is not supported.

Slice and Save

Click Slice and save button in the top right corner, a second confirmation prompt will appear, and click Confirm again to enter the slicing process and download the slice file to your browser's default download location.

Slice and Print

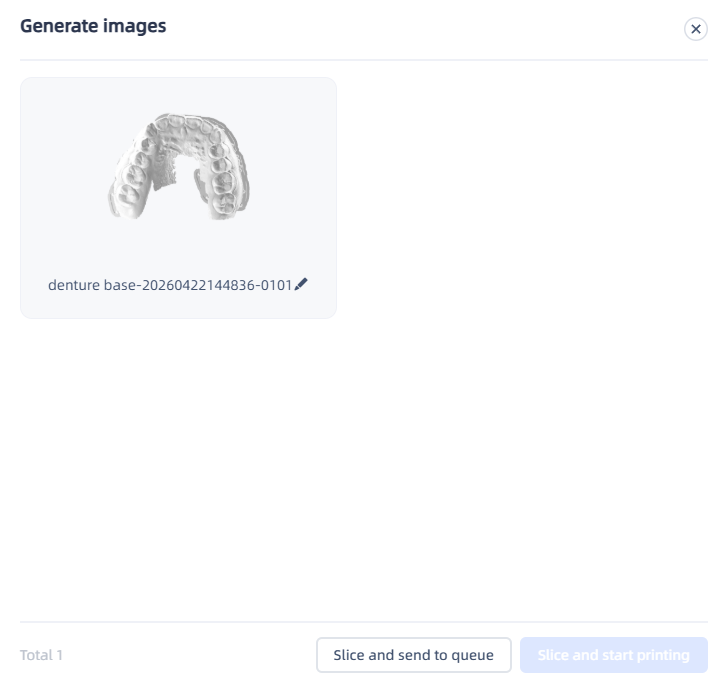

Click Slice and print button, and the Generate images window will appear, displaying the thumbnail of all platforms (supports editing the platform name).

  • Slice and send to queue: Click to enter the slicing process, and the slice file will be sent to the printer's queue when the slice completes.
  • Slice and start printing: Click to enter the slicing process, and the slice file will be sent to the printer and printed directly.

Note

The Automatic slicing and sending function can be enabled in More settings: After the automatic layout & support process is complete, the model file will be sliced and queued, and once the queueing is complete, you will be automatically redirected to the Queue page.

Caution

  • The size limit for sliced files is 1.5 GB, and files exceeding this size cannot be sent to the queue.
  • If the Slice and start printing button is grayed out, it indicates that the selected printer in the application settings is not ready.

  1. Only shows after model files have been imported. ↩
