GD&T Check¶

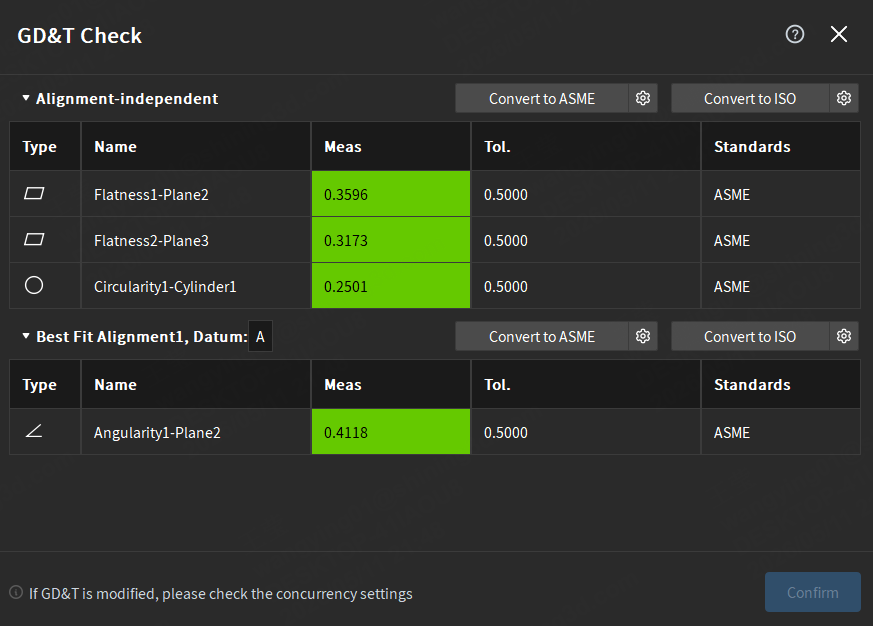

Click GD&T Check to view completed dimension items, support modifying the inspection standard to ASME or ISO standard here and support simultaneous calculation; after clicking Confirm, the recalculated values will be used as the final effective inspection results.
Col

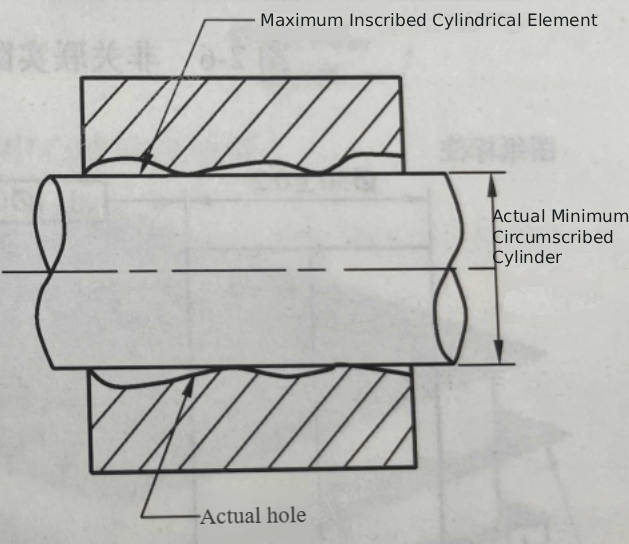

ASME
Col

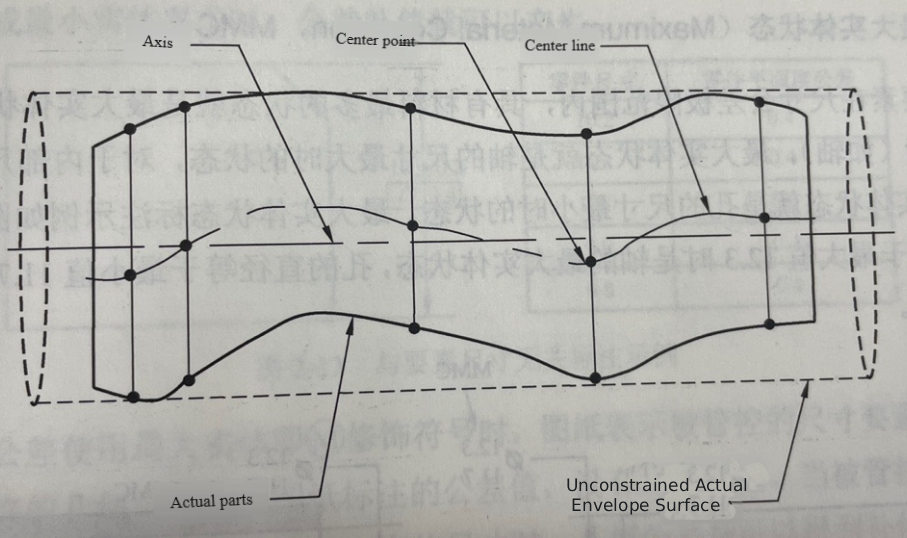

ISO
Note
ASME calculates using the fitted feature center line; ISO calculates using the extracted center line.
Note
- Dimension items using the same datum will be merged into one group for display.
- Support switching between ASME and ISO standards. After switching, the calculation method changes, and the current table measurement values will be recalculated.
- Click
, check Apply Concurrency, all dimension items under this datum group will be optimized and recalculated, and the measurement values in the current table will also be updated. - Only replacing the measurement model will trigger simultaneity calculation.
